Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: animRot
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_TLAnimateRotationBehavior
Containing Schema: pml-animationInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Animate Rotation

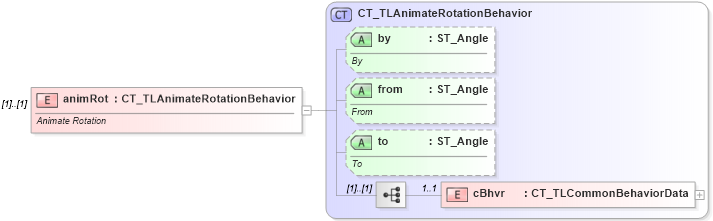

Collapse XSD Schema Diagram:
Drilldown into cBhvr in schema pml-animationinfo_xsd Drilldown into to in schema pml-animationinfo_xsd Drilldown into from in schema pml-animationinfo_xsd Drilldown into by in schema pml-animationinfo_xsd Drilldown into CT_TLAnimateRotationBehavior in schema pml-animationinfo_xsdXSD Diagram of animRot in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="animRot" type="CT_TLAnimateRotationBehavior">
    <xsd:annotation>
        <xsd:documentation>Animate Rotation</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cBhvr p:cBhvr 1 1
Collapse Child Attributes:
Name Type Default Value Use
by p:by Optional
from p:from Optional
to p:to Optional
Collapse Derivation Tree:
