Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: area3DChart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Type: nsA:CT_Area3DChart
Containing Schema: dml-chart.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
3D Area Charts

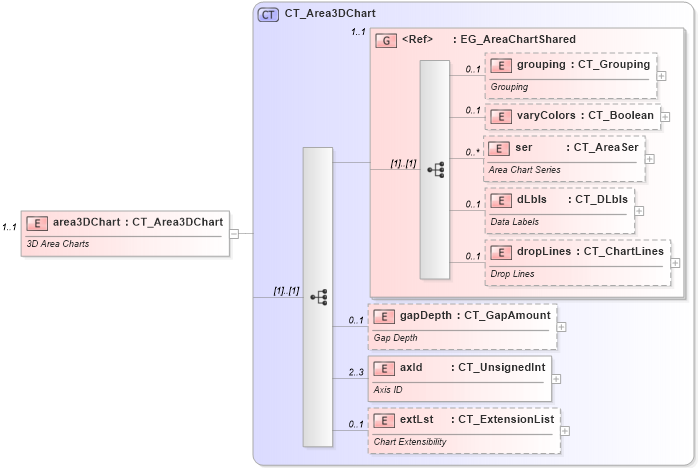

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into gapDepth in schema dml-chart_xsd Drilldown into dropLines in schema dml-chart_xsd Drilldown into dLbls in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into varyColors in schema dml-chart_xsd Drilldown into grouping in schema dml-chart_xsd Drilldown into EG_AreaChartShared in schema dml-chart_xsd Drilldown into CT_Area3DChart in schema dml-chart_xsdXSD Diagram of area3DChart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="area3DChart" type="CT_Area3DChart" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>3D Area Charts</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
grouping nsA:grouping 0 1
varyColors nsA:varyColors 0 1
ser nsA:ser 0 unbounded
dLbls nsA:dLbls 0 1
dropLines nsA:dropLines 0 1
gapDepth nsA:gapDepth 0 1
axId nsA:axId 2 3
extLst nsA:extLst 0 1
<xs:group> nsA:EG_AreaChartShared 1 1
Collapse Derivation Tree:
