Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: bldGraphic
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_TLGraphicalObjectBuild
Containing Schema: pml-animationInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Build Graphics

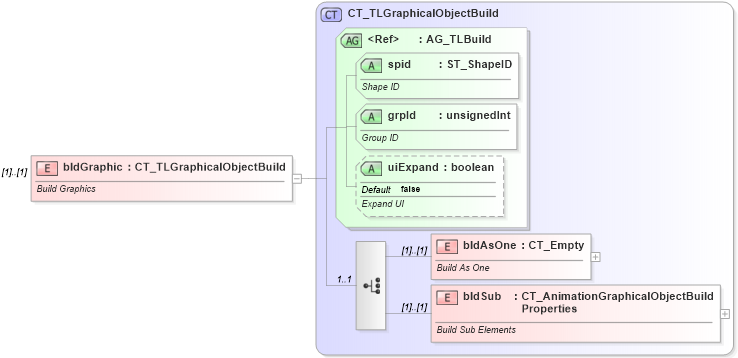

Collapse XSD Schema Diagram:
Drilldown into bldSub in schema pml-animationinfo_xsd Drilldown into bldAsOne in schema pml-animationinfo_xsd Drilldown into uiExpand in schema pml-animationinfo_xsd Drilldown into grpId in schema pml-animationinfo_xsd Drilldown into spid in schema pml-animationinfo_xsd Drilldown into AG_TLBuild in schema pml-animationinfo_xsd Drilldown into CT_TLGraphicalObjectBuild in schema pml-animationinfo_xsdXSD Diagram of bldGraphic in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="bldGraphic" type="CT_TLGraphicalObjectBuild">
    <xsd:annotation>
        <xsd:documentation>Build Graphics</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bldAsOne p:bldAsOne (1) (1)
bldSub p:bldSub (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
spid p:spid Required
grpId p:grpId Required
uiExpand p:uiExpand false Optional
Collapse Derivation Tree:
