Definition Type: Element
Name: cacheHierarchy
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_CacheHierarchy
Containing Schema: sml-pivotTable.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
PivotCache Hierarchy

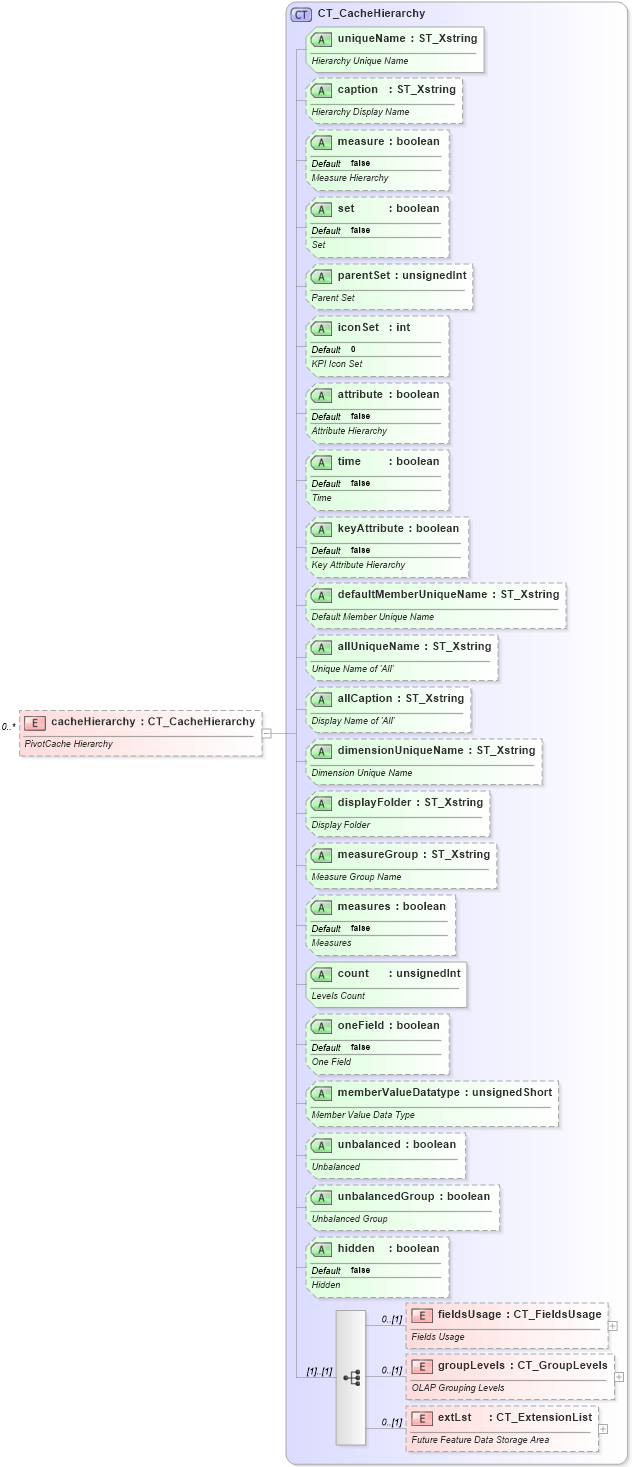

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into groupLevels in schema sml-pivottable_xsd Drilldown into fieldsUsage in schema sml-pivottable_xsd Drilldown into hidden in schema sml-pivottable_xsd Drilldown into unbalancedGroup in schema sml-pivottable_xsd Drilldown into unbalanced in schema sml-pivottable_xsd Drilldown into memberValueDatatype in schema sml-pivottable_xsd Drilldown into oneField in schema sml-pivottable_xsd Drilldown into count in schema sml-pivottable_xsd Drilldown into measures in schema sml-pivottable_xsd Drilldown into measureGroup in schema sml-pivottable_xsd Drilldown into displayFolder in schema sml-pivottable_xsd Drilldown into dimensionUniqueName in schema sml-pivottable_xsd Drilldown into allCaption in schema sml-pivottable_xsd Drilldown into allUniqueName in schema sml-pivottable_xsd Drilldown into defaultMemberUniqueName in schema sml-pivottable_xsd Drilldown into keyAttribute in schema sml-pivottable_xsd Drilldown into time in schema sml-pivottable_xsd Drilldown into attribute in schema sml-pivottable_xsd Drilldown into iconSet in schema sml-pivottable_xsd Drilldown into parentSet in schema sml-pivottable_xsd Drilldown into set in schema sml-pivottable_xsd Drilldown into measure in schema sml-pivottable_xsd Drilldown into caption in schema sml-pivottable_xsd Drilldown into uniqueName in schema sml-pivottable_xsd Drilldown into CT_CacheHierarchy in schema sml-pivottable_xsdXSD Diagram of cacheHierarchy in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cacheHierarchy" minOccurs="0" maxOccurs="unbounded" type="CT_CacheHierarchy">
    <xsd:annotation>
        <xsd:documentation>PivotCache Hierarchy</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fieldsUsage nsM:fieldsUsage 0 (1)
groupLevels nsM:groupLevels 0 (1)
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
uniqueName nsM:uniqueName Required
caption nsM:caption Optional
measure nsM:measure false (Optional)
set nsM:set false (Optional)
parentSet nsM:parentSet Optional
iconSet nsM:iconSet 0 (Optional)
attribute nsM:attribute false (Optional)
time nsM:time false (Optional)
keyAttribute nsM:keyAttribute false (Optional)
defaultMemberUniqueName nsM:defaultMemberUniqueName (Optional)
allUniqueName nsM:allUniqueName (Optional)
allCaption nsM:allCaption (Optional)
dimensionUniqueName nsM:dimensionUniqueName (Optional)
displayFolder nsM:displayFolder (Optional)
measureGroup nsM:measureGroup (Optional)
measures nsM:measures false (Optional)
count nsM:count Required
oneField nsM:oneField false (Optional)
memberValueDatatype nsM:memberValueDatatype Optional
unbalanced nsM:unbalanced Optional
unbalancedGroup nsM:unbalancedGroup Optional
hidden nsM:hidden false (Optional)
Collapse Derivation Tree:
