Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: cell3D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_Cell3D
Containing Schema: dml-table.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Cell 3-D

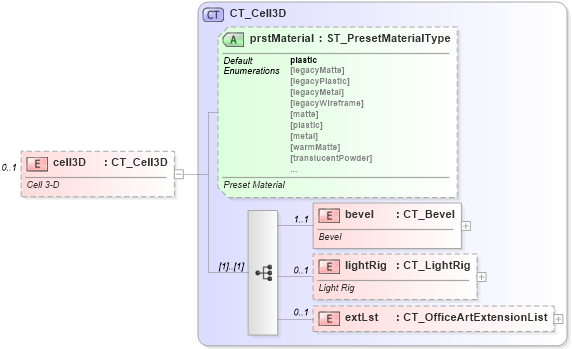

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-tablestyle_xsd Drilldown into lightRig in schema dml-tablestyle_xsd Drilldown into bevel in schema dml-tablestyle_xsd Drilldown into prstMaterial in schema dml-tablestyle_xsd Drilldown into CT_Cell3D in schema dml-tablestyle_xsdXSD Diagram of cell3D in schema dml-table_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cell3D" type="CT_Cell3D" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Cell 3-D</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bevel a:bevel 1 1
lightRig a:lightRig 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
prstMaterial a:prstMaterial plastic Optional
Collapse Derivation Tree:
