Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: checkBox
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Type: w:CT_FFCheckBox
Containing Schema: wml.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Checkbox Form Field Properties

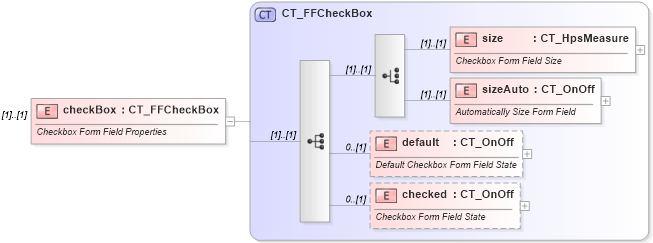

Collapse XSD Schema Diagram:
Drilldown into checked in schema wml_xsd Drilldown into default in schema wml_xsd Drilldown into sizeAuto in schema wml_xsd Drilldown into size in schema wml_xsd Drilldown into CT_FFCheckBox in schema wml_xsdXSD Diagram of checkBox in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="checkBox" type="CT_FFCheckBox">
    <xsd:annotation>
        <xsd:documentation>Checkbox Form Field Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
size w:size (1) (1)
sizeAuto w:sizeAuto (1) (1)
default w:default 0 (1)
checked w:checked 0 (1)
Collapse Derivation Tree:
