Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: cNvPicPr
Namespace: http://schemas.openxmlformats.org/drawingml/2006/picture
Type: a:CT_NonVisualPictureProperties
Containing Schema: dml-picture.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Non-Visual Picture Drawing Properties

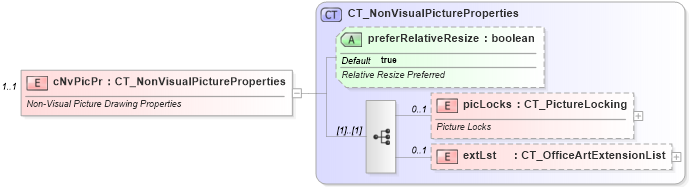

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-documentproperties_xsd Drilldown into picLocks in schema dml-documentproperties_xsd Drilldown into preferRelativeResize in schema dml-documentproperties_xsd Drilldown into CT_NonVisualPictureProperties in schema dml-documentproperties_xsdXSD Diagram of cNvPicPr in schema dml-picture_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cNvPicPr" type="a:CT_NonVisualPictureProperties" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Non-Visual Picture Drawing Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
picLocks a:picLocks 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
preferRelativeResize a:preferRelativeResize true Optional
Collapse Derivation Tree:
