Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: cNvSpPr
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: a:CT_NonVisualDrawingShapeProps
Containing Schema: pml-slide.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Non-Visual Drawing Properties for a Shape

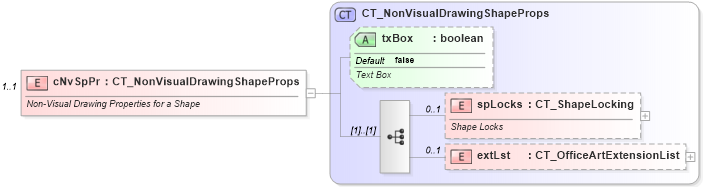

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-documentproperties_xsd Drilldown into spLocks in schema dml-documentproperties_xsd Drilldown into txBox in schema dml-documentproperties_xsd Drilldown into CT_NonVisualDrawingShapeProps in schema dml-documentproperties_xsdXSD Diagram of cNvSpPr in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cNvSpPr" type="a:CT_NonVisualDrawingShapeProps" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Non-Visual Drawing Properties for a Shape</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
spLocks a:spLocks 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
txBox a:txBox false Optional
Collapse Derivation Tree:
