Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: control
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_Control
Containing Schema: pml-embedding.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Embedded Control
Collapse XSD Schema Diagram:

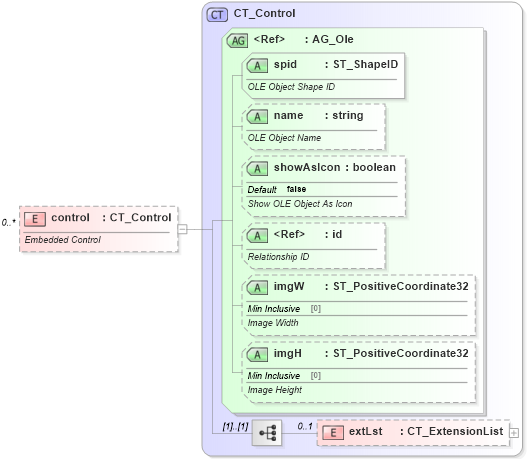

Drilldown into extLst in schema pml-embedding_xsd Drilldown into imgH in schema pml-embedding_xsd Drilldown into imgW in schema pml-embedding_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into showAsIcon in schema pml-embedding_xsd Drilldown into name in schema pml-embedding_xsd Drilldown into spid in schema pml-embedding_xsd Drilldown into AG_Ole in schema pml-embedding_xsd Drilldown into CT_Control in schema pml-embedding_xsdXSD Diagram of control in schema pml-embedding_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="control" type="CT_Control" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Embedded Control</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
spid p:spid Required
name p:name Optional
showAsIcon p:showAsIcon false Optional
id r:id Optional
imgW p:imgW Optional
imgH p:imgH Optional
Collapse Derivation Tree:
