Definition Type: ComplexType
Name: CT_AxDataSource
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

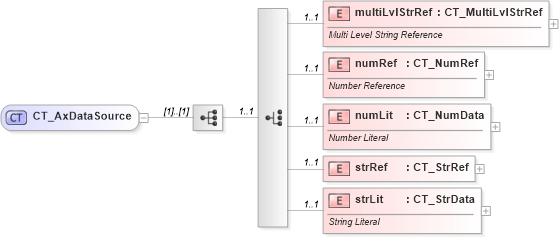

Drilldown into strLit in schema dml-chart_xsd Drilldown into strRef in schema dml-chart_xsd Drilldown into numLit in schema dml-chart_xsd Drilldown into numRef in schema dml-chart_xsd Drilldown into multiLvlStrRef in schema dml-chart_xsdXSD Diagram of CT_AxDataSource in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_AxDataSource">
    <xsd:sequence>
        <xsd:choice minOccurs="1" maxOccurs="1">
            <xsd:element name="multiLvlStrRef" type="CT_MultiLvlStrRef" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Multi Level String Reference</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="numRef" type="CT_NumRef" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Number Reference</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="numLit" type="CT_NumData" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Number Literal</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="strRef" type="CT_StrRef" minOccurs="1" maxOccurs="1">
            </xsd:element>
            <xsd:element name="strLit" type="CT_StrData" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>String Literal</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
multiLvlStrRef nsA:multiLvlStrRef 1 1
numRef nsA:numRef 1 1
numLit nsA:numLit 1 1
strRef nsA:strRef 1 1
strLit nsA:strLit 1 1
Collapse Derivation Tree:
Collapse References:
nsA:cat, nsA:cat, nsA:cat, nsA:cat, nsA:cat, nsA:catnsA:xVal, nsA:xVal,
