Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_BorderPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-styles.xsd
Abstract
Collapse XSD Schema Diagram:

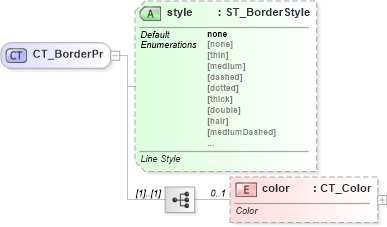

Drilldown into color in schema sml-styles_xsd Drilldown into style in schema sml-styles_xsdXSD Diagram of CT_BorderPr in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_BorderPr">
    <xsd:sequence>
        <xsd:element name="color" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="style" type="ST_BorderStyle" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>Line Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
color nsM:color 0 1
Collapse Child Attributes:
Name Type Default Value Use
style nsM:style none Optional
Collapse Derivation Tree:
Collapse References:
nsM:bottom, nsM:diagonal, nsM:horizontal, nsM:left, nsM:right, nsM:top, nsM:vertical
