Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Break
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract
Collapse XSD Schema Diagram:

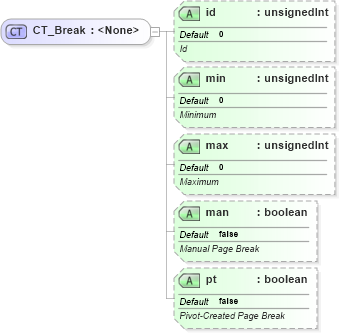

Drilldown into pt in schema sml-sheet_xsd Drilldown into man in schema sml-sheet_xsd Drilldown into max in schema sml-sheet_xsd Drilldown into min in schema sml-sheet_xsd Drilldown into id in schema sml-sheet_xsdXSD Diagram of CT_Break in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Break">
    <xsd:attribute name="id" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="min" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Minimum</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="max" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Maximum</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="man" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Manual Page Break</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="pt" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Pivot-Created Page Break</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id nsM:id 0 Optional
min nsM:min 0 Optional
max nsM:max 0 Optional
man nsM:man false Optional
pt nsM:pt false Optional
Collapse Derivation Tree:
Collapse References:
nsM:brk
