Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_BubbleChart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

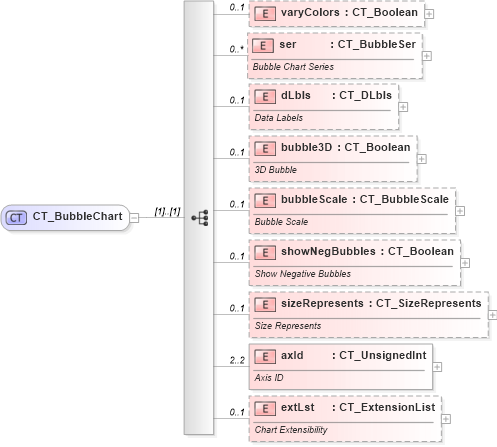

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into sizeRepresents in schema dml-chart_xsd Drilldown into showNegBubbles in schema dml-chart_xsd Drilldown into bubbleScale in schema dml-chart_xsd Drilldown into bubble3D in schema dml-chart_xsd Drilldown into dLbls in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into varyColors in schema dml-chart_xsdXSD Diagram of CT_BubbleChart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_BubbleChart">
    <xsd:sequence>
        <xsd:element name="varyColors" type="CT_Boolean" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="ser" type="CT_BubbleSer" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Bubble Chart Series</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dLbls" type="CT_DLbls" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Labels</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bubble3D" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>3D Bubble</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bubbleScale" type="CT_BubbleScale" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bubble Scale</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showNegBubbles" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Negative Bubbles</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sizeRepresents" type="CT_SizeRepresents" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Size Represents</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="axId" type="CT_UnsignedInt" minOccurs="2" maxOccurs="2">
            <xsd:annotation>
                <xsd:documentation>Axis ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
varyColors nsA:varyColors 0 1
ser nsA:ser 0 unbounded
dLbls nsA:dLbls 0 1
bubble3D nsA:bubble3D 0 1
bubbleScale nsA:bubbleScale 0 1
showNegBubbles nsA:showNegBubbles 0 1
sizeRepresents nsA:sizeRepresents 0 1
axId nsA:axId 2 2
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:bubbleChart
