Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CacheSource
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

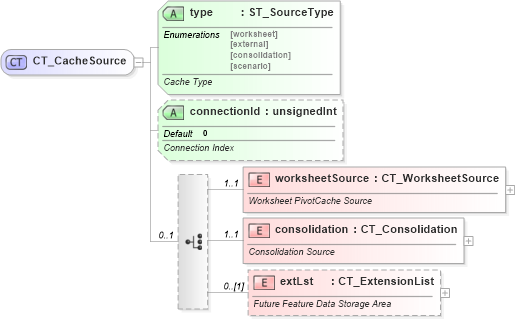

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into consolidation in schema sml-pivottable_xsd Drilldown into worksheetSource in schema sml-pivottable_xsd Drilldown into connectionId in schema sml-pivottable_xsd Drilldown into type in schema sml-pivottable_xsdXSD Diagram of CT_CacheSource in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CacheSource">
    <xsd:choice minOccurs="0" maxOccurs="1">
        <xsd:element name="worksheetSource" type="CT_WorksheetSource" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Worksheet PivotCache Source</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="consolidation" type="CT_Consolidation" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Consolidation Source</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="type" type="ST_SourceType" use="required">
        <xsd:annotation>
            <xsd:documentation>Cache Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="connectionId" type="xsd:unsignedInt" default="0" use="optional">
        <xsd:annotation>
            <xsd:documentation>Connection Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
worksheetSource nsM:worksheetSource 1 1
consolidation nsM:consolidation 1 1
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsM:type Required
connectionId nsM:connectionId 0 Optional
Collapse Derivation Tree:
Collapse References:
nsM:cacheSource
