Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CalcCell
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-calculationChain.xsd
Abstract
Collapse XSD Schema Diagram:

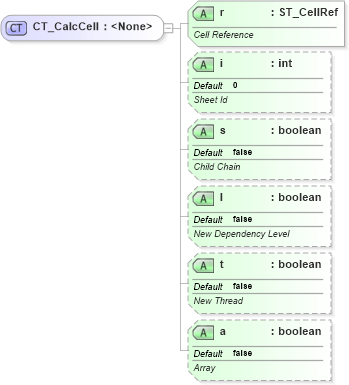

Drilldown into a in schema sml-calculationchain_xsd Drilldown into t in schema sml-calculationchain_xsd Drilldown into l in schema sml-calculationchain_xsd Drilldown into s in schema sml-calculationchain_xsd Drilldown into i in schema sml-calculationchain_xsd Drilldown into r in schema sml-calculationchain_xsdXSD Diagram of CT_CalcCell in schema sml-calculationchain_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CalcCell">
    <xsd:attribute name="r" type="ST_CellRef" use="required">
        <xsd:annotation>
            <xsd:documentation>Cell Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="i" type="xsd:int" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Sheet Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="s" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Child Chain</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="l" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>New Dependency Level</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="t" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>New Thread</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="a" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Array</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
r nsM:r Required
i nsM:i 0 Optional
s nsM:s false Optional
l nsM:l false Optional
t nsM:t false Optional
a nsM:a false Optional
Collapse Derivation Tree:
Collapse References:
nsM:c
