Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CalcPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-workbook.xsd
Abstract

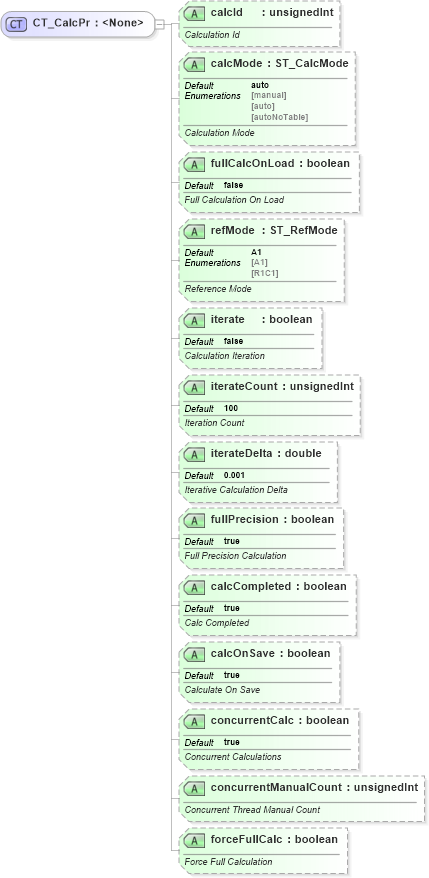

Collapse XSD Schema Diagram:
Drilldown into forceFullCalc in schema sml-workbook_xsd Drilldown into concurrentManualCount in schema sml-workbook_xsd Drilldown into concurrentCalc in schema sml-workbook_xsd Drilldown into calcOnSave in schema sml-workbook_xsd Drilldown into calcCompleted in schema sml-workbook_xsd Drilldown into fullPrecision in schema sml-workbook_xsd Drilldown into iterateDelta in schema sml-workbook_xsd Drilldown into iterateCount in schema sml-workbook_xsd Drilldown into iterate in schema sml-workbook_xsd Drilldown into refMode in schema sml-workbook_xsd Drilldown into fullCalcOnLoad in schema sml-workbook_xsd Drilldown into calcMode in schema sml-workbook_xsd Drilldown into calcId in schema sml-workbook_xsdXSD Diagram of CT_CalcPr in schema sml-workbook_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CalcPr">
    <xsd:attribute name="calcId" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Calculation Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="calcMode" type="ST_CalcMode" use="optional" default="auto">
        <xsd:annotation>
            <xsd:documentation>Calculation Mode</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fullCalcOnLoad" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Full Calculation On Load</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="refMode" type="ST_RefMode" use="optional" default="A1">
        <xsd:annotation>
            <xsd:documentation>Reference Mode</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="iterate" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Calculation Iteration</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="iterateCount" type="xsd:unsignedInt" use="optional" default="100">
        <xsd:annotation>
            <xsd:documentation>Iteration Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="iterateDelta" type="xsd:double" use="optional" default="0.001">
        <xsd:annotation>
            <xsd:documentation>Iterative Calculation Delta</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fullPrecision" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Full Precision Calculation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="calcCompleted" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Calc Completed</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="calcOnSave" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Calculate On Save</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="concurrentCalc" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Concurrent Calculations</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="concurrentManualCount" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Concurrent Thread Manual Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="forceFullCalc" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Force Full Calculation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
calcId nsM:calcId (Optional)
calcMode nsM:calcMode auto Optional
fullCalcOnLoad nsM:fullCalcOnLoad false Optional
refMode nsM:refMode A1 Optional
iterate nsM:iterate false Optional
iterateCount nsM:iterateCount 100 Optional
iterateDelta nsM:iterateDelta 0.001 Optional
fullPrecision nsM:fullPrecision true Optional
calcCompleted nsM:calcCompleted true Optional
calcOnSave nsM:calcOnSave true Optional
concurrentCalc nsM:concurrentCalc true Optional
concurrentManualCount nsM:concurrentManualCount Optional
forceFullCalc nsM:forceFullCalc Optional
Collapse Derivation Tree:
Collapse References:
nsM:calcPr
