Definition Type: ComplexType
Name: CT_Callout
Namespace: urn:schemas-microsoft-com:office:office
Containing Schema: vml-officeDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

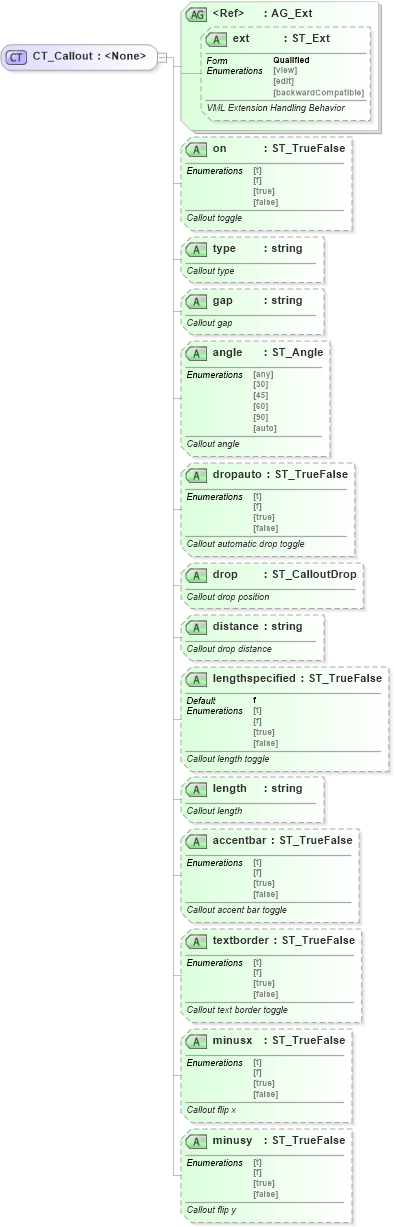

Drilldown into minusy in schema vml-officedrawing_xsd Drilldown into minusx in schema vml-officedrawing_xsd Drilldown into textborder in schema vml-officedrawing_xsd Drilldown into accentbar in schema vml-officedrawing_xsd Drilldown into length in schema vml-officedrawing_xsd Drilldown into lengthspecified in schema vml-officedrawing_xsd Drilldown into distance in schema vml-officedrawing_xsd Drilldown into drop in schema vml-officedrawing_xsd Drilldown into dropauto in schema vml-officedrawing_xsd Drilldown into angle in schema vml-officedrawing_xsd Drilldown into gap in schema vml-officedrawing_xsd Drilldown into type in schema vml-officedrawing_xsd Drilldown into on in schema vml-officedrawing_xsd Drilldown into ext in schema vml-main_xsd Drilldown into AG_Ext in schema vml-main_xsdXSD Diagram of CT_Callout in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Callout">
    <xsd:attributeGroup ref="v:AG_Ext" />
    <xsd:attribute name="on" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="gap" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout gap</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="angle" type="ST_Angle" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout angle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dropauto" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout automatic drop toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="drop" type="ST_CalloutDrop" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout drop position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distance" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout drop distance</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="lengthspecified" type="ST_TrueFalse" default="f" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout length toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="length" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout length</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accentbar" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout accent bar toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="textborder" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout text border toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minusx" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout flip x</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minusy" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Callout flip y</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
ext v:ext (Optional)
on o:on Optional
type o:type Optional
gap o:gap Optional
angle o:angle Optional
dropauto o:dropauto Optional
drop o:drop Optional
distance o:distance Optional
lengthspecified o:lengthspecified f Optional
length o:length Optional
accentbar o:accentbar Optional
textborder o:textborder Optional
minusx o:minusx Optional
minusy o:minusy Optional
Collapse Derivation Tree:
Collapse References:
o:callout
