Definition Type: ComplexType
Name: CT_Category
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract

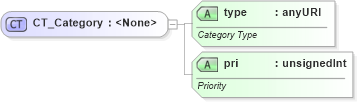

Collapse XSD Schema Diagram:
Drilldown into pri in schema dml-diagramdefinition_xsd Drilldown into type in schema dml-diagramdefinition_xsdXSD Diagram of CT_Category in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Category">
    <xsd:attribute name="type" type="xsd:anyURI" use="required">
        <xsd:annotation>
            <xsd:documentation>Category Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="pri" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Priority</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
type nsC:type Required
pri nsC:pri Required
Collapse Derivation Tree:
Collapse References:
nsC:cat
