Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CellStyle
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-styles.xsd
Abstract

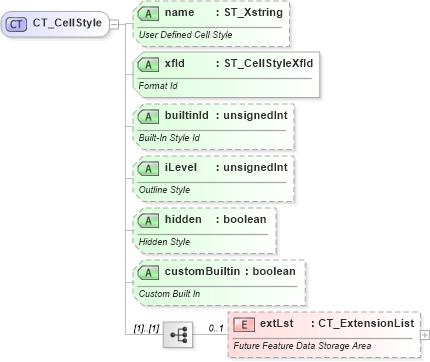

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-styles_xsd Drilldown into customBuiltin in schema sml-styles_xsd Drilldown into hidden in schema sml-styles_xsd Drilldown into iLevel in schema sml-styles_xsd Drilldown into builtinId in schema sml-styles_xsd Drilldown into xfId in schema sml-styles_xsd Drilldown into name in schema sml-styles_xsdXSD Diagram of CT_CellStyle in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CellStyle">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>User Defined Cell Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xfId" type="ST_CellStyleXfId" use="required">
        <xsd:annotation>
            <xsd:documentation>Format Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="builtinId" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Built-In Style Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="iLevel" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Outline Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hidden" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Hidden Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="customBuiltin" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Custom Built In</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Optional
xfId nsM:xfId Required
builtinId nsM:builtinId Optional
iLevel nsM:iLevel Optional
hidden nsM:hidden Optional
customBuiltin nsM:customBuiltin Optional
Collapse Derivation Tree:
Collapse References:
nsM:cellStyle
