Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Cfvo
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

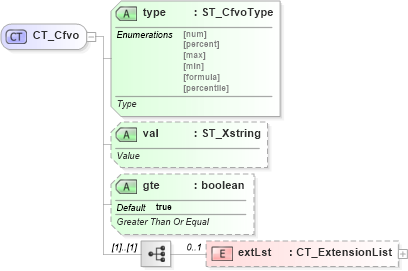

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sheet_xsd Drilldown into gte in schema sml-sheet_xsd Drilldown into val in schema sml-sheet_xsd Drilldown into type in schema sml-sheet_xsdXSD Diagram of CT_Cfvo in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Cfvo">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="type" type="ST_CfvoType" use="required">
        <xsd:annotation>
            <xsd:documentation>Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="val" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="gte" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Greater Than Or Equal</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
type nsM:type Required
val nsM:val Optional
gte nsM:gte true Optional
Collapse Derivation Tree:
Collapse References:
nsM:cfvo, nsM:cfvo, nsM:cfvo
