Definition Type: ComplexType
Name: CT_Chart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

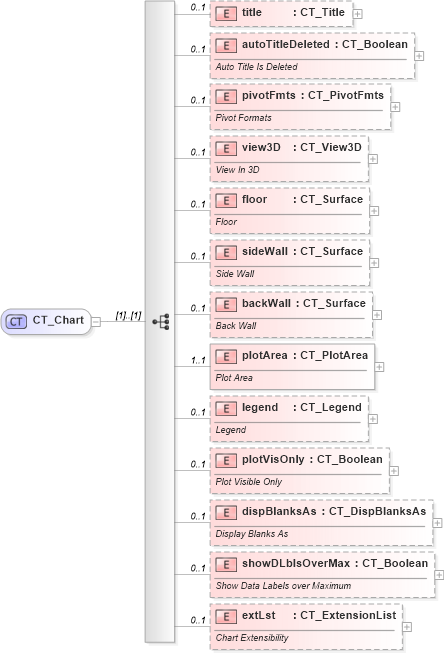

Drilldown into extLst in schema dml-chart_xsd Drilldown into showDLblsOverMax in schema dml-chart_xsd Drilldown into dispBlanksAs in schema dml-chart_xsd Drilldown into plotVisOnly in schema dml-chart_xsd Drilldown into legend in schema dml-chart_xsd Drilldown into plotArea in schema dml-chart_xsd Drilldown into backWall in schema dml-chart_xsd Drilldown into sideWall in schema dml-chart_xsd Drilldown into floor in schema dml-chart_xsd Drilldown into view3D in schema dml-chart_xsd Drilldown into pivotFmts in schema dml-chart_xsd Drilldown into autoTitleDeleted in schema dml-chart_xsd Drilldown into title in schema dml-chart_xsdXSD Diagram of CT_Chart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Chart">
    <xsd:sequence>
        <xsd:element name="title" type="CT_Title" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="autoTitleDeleted" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Auto Title Is Deleted</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pivotFmts" type="CT_PivotFmts" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Pivot Formats</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="view3D" type="CT_View3D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>View In 3D</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="floor" type="CT_Surface" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Floor</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sideWall" type="CT_Surface" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Side Wall</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="backWall" type="CT_Surface" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Back Wall</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="plotArea" type="CT_PlotArea" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Plot Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="legend" type="CT_Legend" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Legend</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="plotVisOnly" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Plot Visible Only</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dispBlanksAs" type="CT_DispBlanksAs" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Display Blanks As</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showDLblsOverMax" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Data Labels over Maximum</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title nsA:title 0 1
autoTitleDeleted nsA:autoTitleDeleted 0 1
pivotFmts nsA:pivotFmts 0 1
view3D nsA:view3D 0 1
floor nsA:floor 0 1
sideWall nsA:sideWall 0 1
backWall nsA:backWall 0 1
plotArea nsA:plotArea 1 1
legend nsA:legend 0 1
plotVisOnly nsA:plotVisOnly 0 1
dispBlanksAs nsA:dispBlanksAs 0 1
showDLblsOverMax nsA:showDLblsOverMax 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:chart
