Definition Type: ComplexType
Name: CT_ChartFormat
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract
Collapse XSD Schema Diagram:

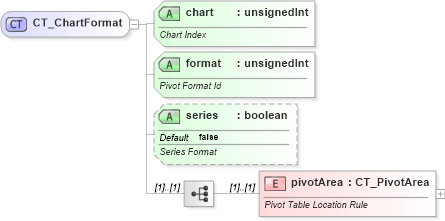

Drilldown into pivotArea in schema sml-pivottable_xsd Drilldown into series in schema sml-pivottable_xsd Drilldown into format in schema sml-pivottable_xsd Drilldown into chart in schema sml-pivottable_xsdXSD Diagram of CT_ChartFormat in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ChartFormat">
    <xsd:sequence>
        <xsd:element name="pivotArea" type="CT_PivotArea">
            <xsd:annotation>
                <xsd:documentation>Pivot Table Location Rule</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="chart" use="required" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Chart Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="format" use="required" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Pivot Format Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="series" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Series Format</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pivotArea nsM:pivotArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
chart nsM:chart Required
format nsM:format Required
series nsM:series false (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:chartFormat
