Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Chartsheet
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

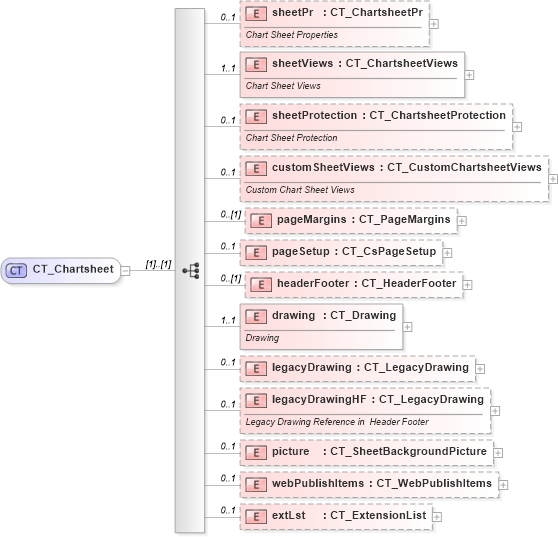

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sheet_xsd Drilldown into webPublishItems in schema sml-sheet_xsd Drilldown into picture in schema sml-sheet_xsd Drilldown into legacyDrawingHF in schema sml-sheet_xsd Drilldown into legacyDrawing in schema sml-sheet_xsd Drilldown into drawing in schema sml-sheet_xsd Drilldown into headerFooter in schema sml-sheet_xsd Drilldown into pageSetup in schema sml-sheet_xsd Drilldown into pageMargins in schema sml-sheet_xsd Drilldown into customSheetViews in schema sml-sheet_xsd Drilldown into sheetProtection in schema sml-sheet_xsd Drilldown into sheetViews in schema sml-sheet_xsd Drilldown into sheetPr in schema sml-sheet_xsdXSD Diagram of CT_Chartsheet in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Chartsheet">
    <xsd:sequence>
        <xsd:element name="sheetPr" type="CT_ChartsheetPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Sheet Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sheetViews" type="CT_ChartsheetViews" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Sheet Views</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sheetProtection" type="CT_ChartsheetProtection" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Sheet Protection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="customSheetViews" type="CT_CustomChartsheetViews" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Custom Chart Sheet Views</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pageMargins" minOccurs="0" type="CT_PageMargins">
        </xsd:element>
        <xsd:element name="pageSetup" type="CT_CsPageSetup" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="headerFooter" minOccurs="0" type="CT_HeaderFooter">
        </xsd:element>
        <xsd:element name="drawing" type="CT_Drawing" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Drawing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="legacyDrawing" type="CT_LegacyDrawing" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="legacyDrawingHF" type="CT_LegacyDrawing" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Legacy Drawing Reference in  Header Footer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="picture" type="CT_SheetBackgroundPicture" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="webPublishItems" type="CT_WebPublishItems" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sheetPr nsM:sheetPr 0 1
sheetViews nsM:sheetViews 1 1
sheetProtection nsM:sheetProtection 0 1
customSheetViews nsM:customSheetViews 0 1
pageMargins nsM:pageMargins 0 (1)
pageSetup nsM:pageSetup 0 1
headerFooter nsM:headerFooter 0 (1)
drawing nsM:drawing 1 1
legacyDrawing nsM:legacyDrawing 0 1
legacyDrawingHF nsM:legacyDrawingHF 0 1
picture nsM:picture 0 1
webPublishItems nsM:webPublishItems 0 1
extLst nsM:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsM:chartsheet
