Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ChartsheetPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract
Collapse XSD Schema Diagram:

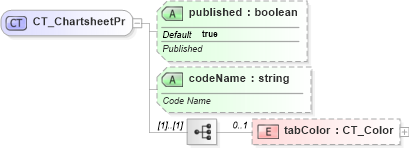

Drilldown into tabColor in schema sml-sheet_xsd Drilldown into codeName in schema sml-sheet_xsd Drilldown into published in schema sml-sheet_xsdXSD Diagram of CT_ChartsheetPr in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ChartsheetPr">
    <xsd:sequence>
        <xsd:element name="tabColor" type="CT_Color" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="published" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Published</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="codeName" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Code Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tabColor nsM:tabColor 0 1
Collapse Child Attributes:
Name Type Default Value Use
published nsM:published true Optional
codeName nsM:codeName Optional
Collapse Derivation Tree:
Collapse References:
nsM:sheetPr
