Definition Type: ComplexType
Name: CT_ChartSpace
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

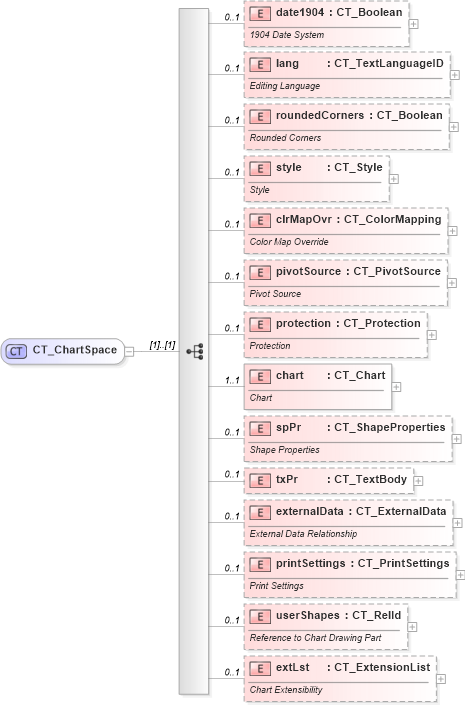

Drilldown into extLst in schema dml-chart_xsd Drilldown into userShapes in schema dml-chart_xsd Drilldown into printSettings in schema dml-chart_xsd Drilldown into externalData in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into chart in schema dml-chart_xsd Drilldown into protection in schema dml-chart_xsd Drilldown into pivotSource in schema dml-chart_xsd Drilldown into clrMapOvr in schema dml-chart_xsd Drilldown into style in schema dml-chart_xsd Drilldown into roundedCorners in schema dml-chart_xsd Drilldown into lang in schema dml-chart_xsd Drilldown into date1904 in schema dml-chart_xsdXSD Diagram of CT_ChartSpace in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ChartSpace">
    <xsd:sequence>
        <xsd:element name="date1904" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>1904 Date System</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lang" type="CT_TextLanguageID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Editing Language</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="roundedCorners" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Rounded Corners</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="style" type="CT_Style" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Style</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clrMapOvr" type="a:CT_ColorMapping" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Color Map Override</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pivotSource" type="CT_PivotSource" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Pivot Source</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="protection" type="CT_Protection" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Protection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="chart" type="CT_Chart" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="txPr" type="a:CT_TextBody" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="externalData" type="CT_ExternalData" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>External Data Relationship</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="printSettings" type="CT_PrintSettings" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Print Settings</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="userShapes" type="CT_RelId" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Reference to Chart Drawing Part</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
date1904 nsA:date1904 0 1
lang nsA:lang 0 1
roundedCorners nsA:roundedCorners 0 1
style nsA:style 0 1
clrMapOvr nsA:clrMapOvr 0 1
pivotSource nsA:pivotSource 0 1
protection nsA:protection 0 1
chart nsA:chart 1 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
externalData nsA:externalData 0 1
printSettings nsA:printSettings 0 1
userShapes nsA:userShapes 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:chartSpace
