Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Col
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

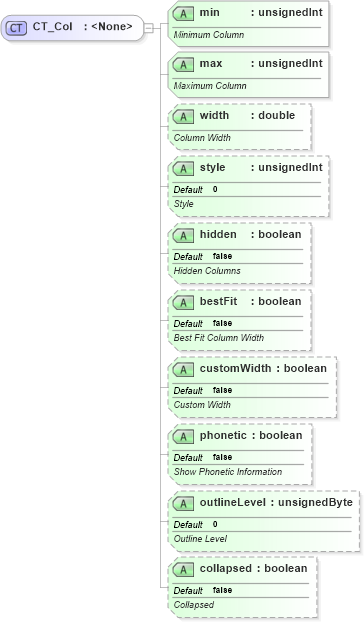

Collapse XSD Schema Diagram:
Drilldown into collapsed in schema sml-sheet_xsd Drilldown into outlineLevel in schema sml-sheet_xsd Drilldown into phonetic in schema sml-sheet_xsd Drilldown into customWidth in schema sml-sheet_xsd Drilldown into bestFit in schema sml-sheet_xsd Drilldown into hidden in schema sml-sheet_xsd Drilldown into style in schema sml-sheet_xsd Drilldown into width in schema sml-sheet_xsd Drilldown into max in schema sml-sheet_xsd Drilldown into min in schema sml-sheet_xsdXSD Diagram of CT_Col in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Col">
    <xsd:attribute name="min" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Minimum Column</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="max" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Maximum Column</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="width" type="xsd:double" use="optional">
        <xsd:annotation>
            <xsd:documentation>Column Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="style" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hidden" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Hidden Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bestFit" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Best Fit Column Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="customWidth" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Custom Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="phonetic" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Show Phonetic Information</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="outlineLevel" type="xsd:unsignedByte" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Outline Level</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="collapsed" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Collapsed</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
min nsM:min Required
max nsM:max Required
width nsM:width Optional
style nsM:style 0 Optional
hidden nsM:hidden false Optional
bestFit nsM:bestFit false Optional
customWidth nsM:customWidth false Optional
phonetic nsM:phonetic false Optional
outlineLevel nsM:outlineLevel 0 Optional
collapsed nsM:collapsed false Optional
Collapse Derivation Tree:
Collapse References:
nsM:col
