Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ColorChangeEffect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd
Abstract
Collapse XSD Schema Diagram:

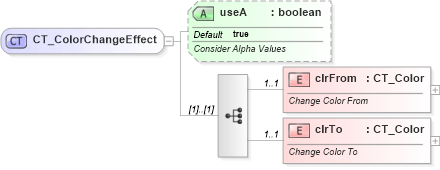

Drilldown into clrTo in schema dml-shapeeffects_xsd Drilldown into clrFrom in schema dml-shapeeffects_xsd Drilldown into useA in schema dml-shapeeffects_xsdXSD Diagram of CT_ColorChangeEffect in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ColorChangeEffect">
    <xsd:sequence>
        <xsd:element name="clrFrom" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Change Color From</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clrTo" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Change Color To</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="useA" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Consider Alpha Values</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
clrFrom a:clrFrom 1 1
clrTo a:clrTo 1 1
Collapse Child Attributes:
Name Type Default Value Use
useA a:useA true Optional
Collapse Derivation Tree:
Collapse References:
a:clrChange, a:clrChange
