Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ColorMapping
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-stylesheet.xsd
Abstract
Collapse XSD Schema Diagram:

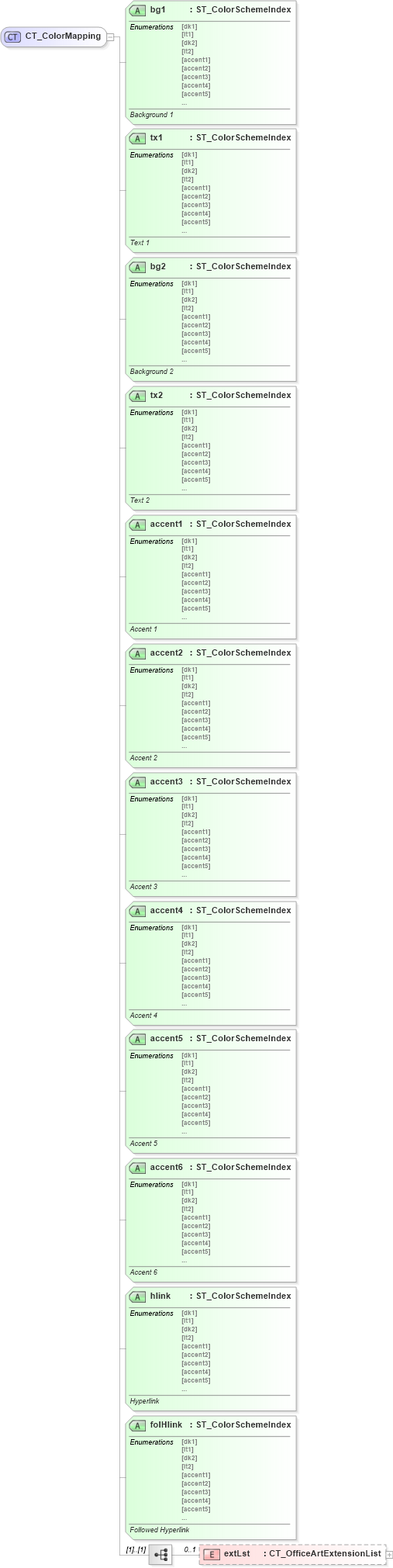

Drilldown into extLst in schema dml-stylesheet_xsd Drilldown into folHlink in schema dml-stylesheet_xsd Drilldown into hlink in schema dml-stylesheet_xsd Drilldown into accent6 in schema dml-stylesheet_xsd Drilldown into accent5 in schema dml-stylesheet_xsd Drilldown into accent4 in schema dml-stylesheet_xsd Drilldown into accent3 in schema dml-stylesheet_xsd Drilldown into accent2 in schema dml-stylesheet_xsd Drilldown into accent1 in schema dml-stylesheet_xsd Drilldown into tx2 in schema dml-stylesheet_xsd Drilldown into bg2 in schema dml-stylesheet_xsd Drilldown into tx1 in schema dml-stylesheet_xsd Drilldown into bg1 in schema dml-stylesheet_xsdXSD Diagram of CT_ColorMapping in schema dml-stylesheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ColorMapping">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="bg1" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Background 1</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tx1" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Text 1</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bg2" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Background 2</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tx2" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Text 2</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accent1" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Accent 1</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accent2" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Accent 2</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accent3" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Accent 3</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accent4" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Accent 4</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accent5" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Accent 5</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accent6" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Accent 6</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hlink" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Hyperlink</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="folHlink" type="ST_ColorSchemeIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Followed Hyperlink</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
bg1 a:bg1 Required
tx1 a:tx1 Required
bg2 a:bg2 Required
tx2 a:tx2 Required
accent1 a:accent1 Required
accent2 a:accent2 Required
accent3 a:accent3 Required
accent4 a:accent4 Required
accent5 a:accent5 Required
accent6 a:accent6 Required
hlink a:hlink Required
folHlink a:folHlink Required
Collapse Derivation Tree:
Collapse References:
a:clrMap, a:clrMap, p:clrMapnsA:clrMapOvr, a:overrideClrMapping,
