Definition Type: ComplexType
Name: CT_ColorScheme
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseStylesheet.xsd
Abstract

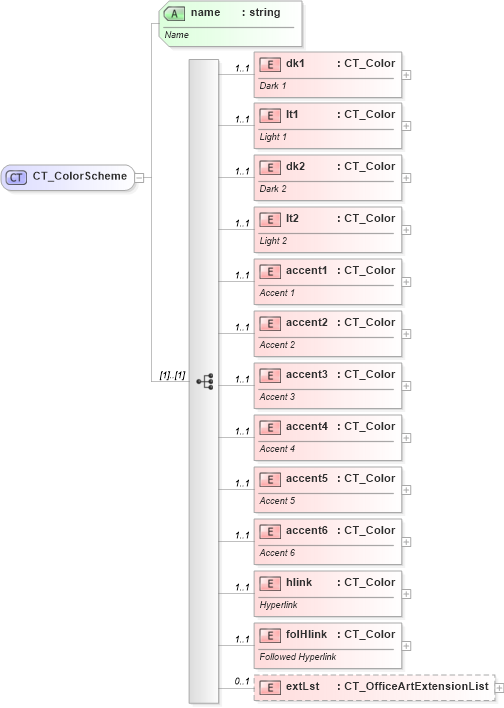

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-basestylesheet_xsd Drilldown into folHlink in schema dml-basestylesheet_xsd Drilldown into hlink in schema dml-basestylesheet_xsd Drilldown into accent6 in schema dml-basestylesheet_xsd Drilldown into accent5 in schema dml-basestylesheet_xsd Drilldown into accent4 in schema dml-basestylesheet_xsd Drilldown into accent3 in schema dml-basestylesheet_xsd Drilldown into accent2 in schema dml-basestylesheet_xsd Drilldown into accent1 in schema dml-basestylesheet_xsd Drilldown into lt2 in schema dml-basestylesheet_xsd Drilldown into dk2 in schema dml-basestylesheet_xsd Drilldown into lt1 in schema dml-basestylesheet_xsd Drilldown into dk1 in schema dml-basestylesheet_xsd Drilldown into name in schema dml-basestylesheet_xsdXSD Diagram of CT_ColorScheme in schema dml-basestylesheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ColorScheme">
    <xsd:sequence>
        <xsd:element name="dk1" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Dark 1</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lt1" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Light 1</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dk2" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Dark 2</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lt2" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Light 2</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accent1" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Accent 1</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accent2" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Accent 2</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accent3" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Accent 3</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accent4" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Accent 4</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accent5" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Accent 5</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accent6" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Accent 6</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hlink" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hyperlink</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="folHlink" type="CT_Color" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Followed Hyperlink</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dk1 a:dk1 1 1
lt1 a:lt1 1 1
dk2 a:dk2 1 1
lt2 a:lt2 1 1
accent1 a:accent1 1 1
accent2 a:accent2 1 1
accent3 a:accent3 1 1
accent4 a:accent4 1 1
accent5 a:accent5 1 1
accent6 a:accent6 1 1
hlink a:hlink 1 1
folHlink a:folHlink 1 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name a:name Required
Collapse Derivation Tree:
Collapse References:
a:clrScheme, a:clrScheme, a:clrScheme
