Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Columns
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

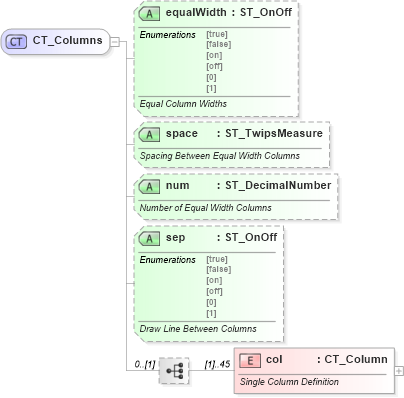

Collapse XSD Schema Diagram:
Drilldown into col in schema wml_xsd Drilldown into sep in schema wml_xsd Drilldown into num in schema wml_xsd Drilldown into space in schema wml_xsd Drilldown into equalWidth in schema wml_xsdXSD Diagram of CT_Columns in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Columns">
    <xsd:sequence minOccurs="0">
        <xsd:element name="col" type="CT_Column" maxOccurs="45">
            <xsd:annotation>
                <xsd:documentation>Single Column Definition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="equalWidth" type="ST_OnOff" use="optional">
        <xsd:annotation>
            <xsd:documentation>Equal Column Widths</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="space" type="ST_TwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Spacing Between Equal Width Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="num" type="ST_DecimalNumber" use="optional">
        <xsd:annotation>
            <xsd:documentation>Number of Equal Width Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sep" type="ST_OnOff" use="optional">
        <xsd:annotation>
            <xsd:documentation>Draw Line Between Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
col w:col (1) 45
Collapse Child Attributes:
Name Type Default Value Use
equalWidth w:equalWidth Optional
space w:space Optional
num w:num Optional
sep w:sep Optional
Collapse Derivation Tree:
Collapse References:
w:cols
