Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Comment
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-comments.xsd
Abstract

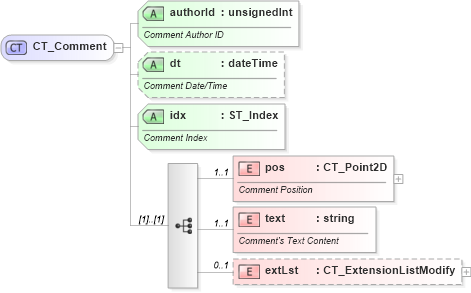

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-comments_xsd Drilldown into text in schema pml-comments_xsd Drilldown into pos in schema pml-comments_xsd Drilldown into idx in schema pml-comments_xsd Drilldown into dt in schema pml-comments_xsd Drilldown into authorId in schema pml-comments_xsdXSD Diagram of CT_Comment in schema pml-comments_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Comment">
    <xsd:sequence>
        <xsd:element name="pos" type="a:CT_Point2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Comment Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="text" type="xsd:string" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Comment's Text Content</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionListModify" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="authorId" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Comment Author ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dt" type="xsd:dateTime" use="optional">
        <xsd:annotation>
            <xsd:documentation>Comment Date/Time</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="idx" type="ST_Index" use="required">
        <xsd:annotation>
            <xsd:documentation>Comment Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos p:pos 1 1
text p:text 1 1
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
authorId p:authorId Required
dt p:dt Optional
idx p:idx Required
Collapse Derivation Tree:
  • CT_Comment
Collapse References:
p:cm
