Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CommonSlideViewProperties
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-viewProperties.xsd
Abstract

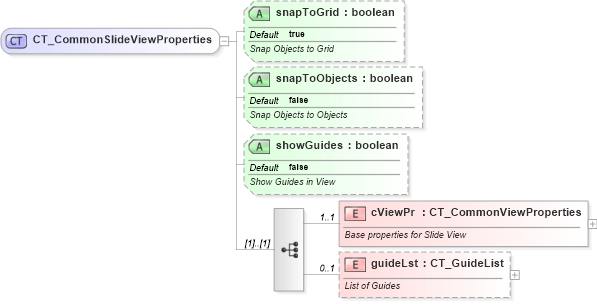

Collapse XSD Schema Diagram:
Drilldown into guideLst in schema pml-viewproperties_xsd Drilldown into cViewPr in schema pml-viewproperties_xsd Drilldown into showGuides in schema pml-viewproperties_xsd Drilldown into snapToObjects in schema pml-viewproperties_xsd Drilldown into snapToGrid in schema pml-viewproperties_xsdXSD Diagram of CT_CommonSlideViewProperties in schema pml-viewproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CommonSlideViewProperties">
    <xsd:sequence>
        <xsd:element name="cViewPr" type="CT_CommonViewProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Base properties for Slide View</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="guideLst" type="CT_GuideList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Guides</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="snapToGrid" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Snap Objects to Grid</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="snapToObjects" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Snap Objects to Objects</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showGuides" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Show Guides in View</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cViewPr p:cViewPr 1 1
guideLst p:guideLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
snapToGrid p:snapToGrid true Optional
snapToObjects p:snapToObjects false Optional
showGuides p:showGuides false Optional
Collapse Derivation Tree:
Collapse References:
p:cSldViewPr, p:cSldViewPr
