Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CommonViewProperties
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-viewProperties.xsd
Abstract
Collapse XSD Schema Diagram:

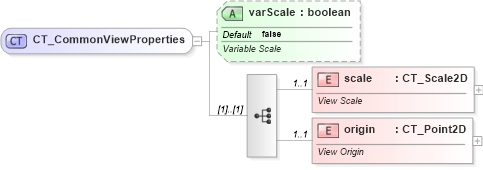

Drilldown into origin in schema pml-viewproperties_xsd Drilldown into scale in schema pml-viewproperties_xsd Drilldown into varScale in schema pml-viewproperties_xsdXSD Diagram of CT_CommonViewProperties in schema pml-viewproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CommonViewProperties">
    <xsd:sequence>
        <xsd:element name="scale" type="a:CT_Scale2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>View Scale</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="origin" type="a:CT_Point2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>View Origin</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="varScale" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Variable Scale</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scale p:scale 1 1
origin p:origin 1 1
Collapse Child Attributes:
Name Type Default Value Use
varScale p:varScale false Optional
Collapse Derivation Tree:
Collapse References:
p:cViewPr, p:cViewPr, p:cViewPr, p:cViewPr
