Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ConditionalFormatting
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

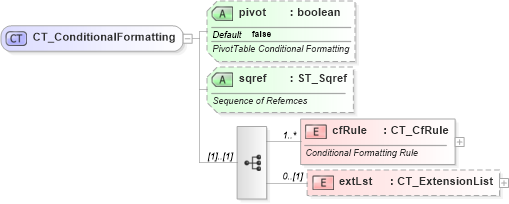

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sheet_xsd Drilldown into cfRule in schema sml-sheet_xsd Drilldown into sqref in schema sml-sheet_xsd Drilldown into pivot in schema sml-sheet_xsdXSD Diagram of CT_ConditionalFormatting in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ConditionalFormatting">
    <xsd:sequence>
        <xsd:element name="cfRule" type="CT_CfRule" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Conditional Formatting Rule</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="pivot" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>PivotTable Conditional Formatting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sqref" type="ST_Sqref">
        <xsd:annotation>
            <xsd:documentation>Sequence of Refernces</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cfRule nsM:cfRule 1 unbounded
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
pivot nsM:pivot false (Optional)
sqref nsM:sqref (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:conditionalFormatting, nsM:conditionalFormatting
