Definition Type: ComplexType
Name: CT_ConnectorNonVisual
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chartDrawing
Containing Schema: dml-chartDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

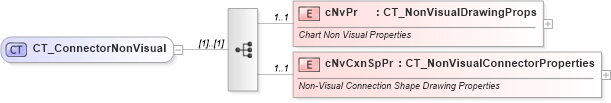

Drilldown into cNvCxnSpPr in schema dml-chartdrawing_xsd Drilldown into cNvPr in schema dml-chartdrawing_xsdXSD Diagram of CT_ConnectorNonVisual in schema dml-chartdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ConnectorNonVisual">
    <xsd:sequence>
        <xsd:element name="cNvPr" type="a:CT_NonVisualDrawingProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Non Visual Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cNvCxnSpPr" type="a:CT_NonVisualConnectorProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Connection Shape Drawing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cNvPr cdr:cNvPr 1 1
cNvCxnSpPr cdr:cNvCxnSpPr 1 1
Collapse Derivation Tree:
Collapse References:
cdr:nvCxnSpPr
