Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Consolidation
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

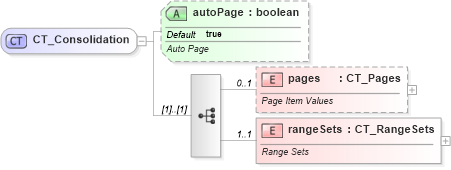

Collapse XSD Schema Diagram:
Drilldown into rangeSets in schema sml-pivottable_xsd Drilldown into pages in schema sml-pivottable_xsd Drilldown into autoPage in schema sml-pivottable_xsdXSD Diagram of CT_Consolidation in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Consolidation">
    <xsd:sequence>
        <xsd:element name="pages" type="CT_Pages" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Page Item Values</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="rangeSets" type="CT_RangeSets" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Range Sets</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="autoPage" type="xsd:boolean" default="true" use="optional">
        <xsd:annotation>
            <xsd:documentation>Auto Page</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pages nsM:pages 0 1
rangeSets nsM:rangeSets 1 1
Collapse Child Attributes:
Name Type Default Value Use
autoPage nsM:autoPage true Optional
Collapse Derivation Tree:
Collapse References:
nsM:consolidation
