Definition Type: ComplexType
Name: CT_CustomWorkbookView
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-workbook.xsd
Abstract

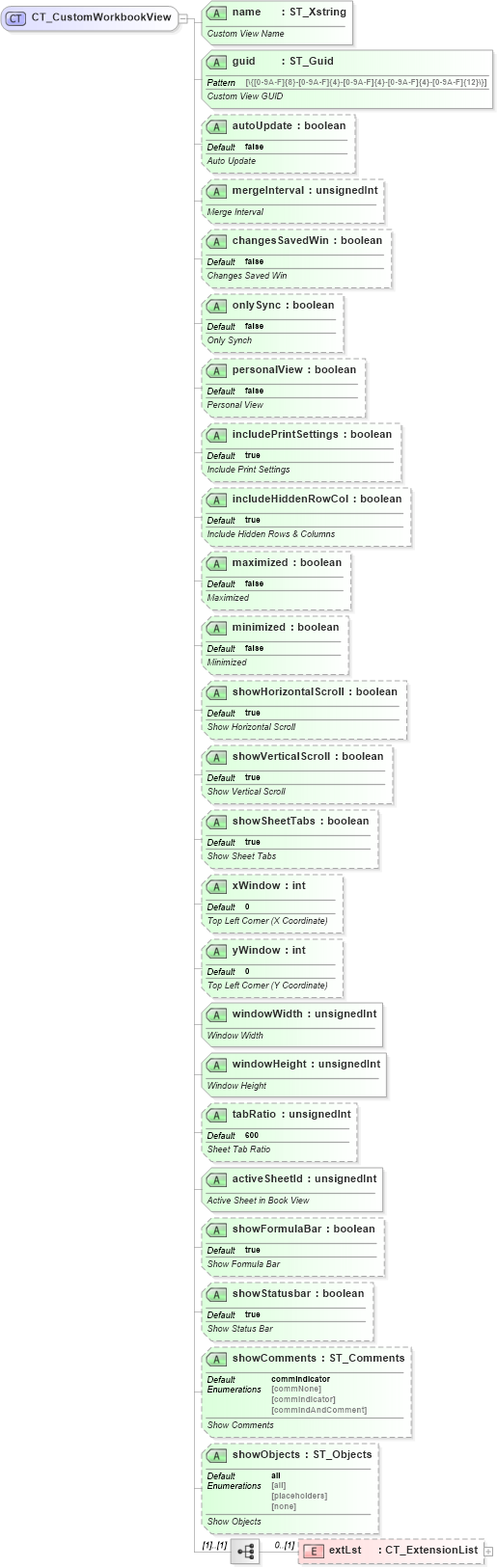

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-workbook_xsd Drilldown into showObjects in schema sml-workbook_xsd Drilldown into showComments in schema sml-workbook_xsd Drilldown into showStatusbar in schema sml-workbook_xsd Drilldown into showFormulaBar in schema sml-workbook_xsd Drilldown into activeSheetId in schema sml-workbook_xsd Drilldown into tabRatio in schema sml-workbook_xsd Drilldown into windowHeight in schema sml-workbook_xsd Drilldown into windowWidth in schema sml-workbook_xsd Drilldown into yWindow in schema sml-workbook_xsd Drilldown into xWindow in schema sml-workbook_xsd Drilldown into showSheetTabs in schema sml-workbook_xsd Drilldown into showVerticalScroll in schema sml-workbook_xsd Drilldown into showHorizontalScroll in schema sml-workbook_xsd Drilldown into minimized in schema sml-workbook_xsd Drilldown into maximized in schema sml-workbook_xsd Drilldown into includeHiddenRowCol in schema sml-workbook_xsd Drilldown into includePrintSettings in schema sml-workbook_xsd Drilldown into personalView in schema sml-workbook_xsd Drilldown into onlySync in schema sml-workbook_xsd Drilldown into changesSavedWin in schema sml-workbook_xsd Drilldown into mergeInterval in schema sml-workbook_xsd Drilldown into autoUpdate in schema sml-workbook_xsd Drilldown into guid in schema sml-workbook_xsd Drilldown into name in schema sml-workbook_xsdXSD Diagram of CT_CustomWorkbookView in schema sml-workbook_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CustomWorkbookView">
    <xsd:sequence>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="ST_Xstring" use="required">
        <xsd:annotation>
            <xsd:documentation>Custom View Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="guid" type="ST_Guid" use="required">
        <xsd:annotation>
            <xsd:documentation>Custom View GUID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="autoUpdate" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Auto Update</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="mergeInterval" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Merge Interval</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="changesSavedWin" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Changes Saved Win</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="onlySync" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Only Synch</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="personalView" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Personal View</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="includePrintSettings" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Include Print Settings</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="includeHiddenRowCol" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Include Hidden Rows &amp; Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maximized" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Maximized</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minimized" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Minimized</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showHorizontalScroll" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Horizontal Scroll</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showVerticalScroll" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Vertical Scroll</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showSheetTabs" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Sheet Tabs</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xWindow" type="xsd:int" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Top Left Corner (X Coordinate)</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="yWindow" type="xsd:int" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Top Left Corner (Y Coordinate)</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="windowWidth" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Window Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="windowHeight" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Window Height</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tabRatio" type="xsd:unsignedInt" use="optional" default="600">
        <xsd:annotation>
            <xsd:documentation>Sheet Tab Ratio</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="activeSheetId" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Active Sheet in Book View</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showFormulaBar" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Formula Bar</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showStatusbar" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Status Bar</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showComments" type="ST_Comments" use="optional" default="commIndicator">
        <xsd:annotation>
            <xsd:documentation>Show Comments</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showObjects" type="ST_Objects" use="optional" default="all">
        <xsd:annotation>
            <xsd:documentation>Show Objects</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Required
guid nsM:guid Required
autoUpdate nsM:autoUpdate false Optional
mergeInterval nsM:mergeInterval Optional
changesSavedWin nsM:changesSavedWin false Optional
onlySync nsM:onlySync false Optional
personalView nsM:personalView false Optional
includePrintSettings nsM:includePrintSettings true Optional
includeHiddenRowCol nsM:includeHiddenRowCol true Optional
maximized nsM:maximized false Optional
minimized nsM:minimized false Optional
showHorizontalScroll nsM:showHorizontalScroll true Optional
showVerticalScroll nsM:showVerticalScroll true Optional
showSheetTabs nsM:showSheetTabs true Optional
xWindow nsM:xWindow 0 Optional
yWindow nsM:yWindow 0 Optional
windowWidth nsM:windowWidth Required
windowHeight nsM:windowHeight Required
tabRatio nsM:tabRatio 600 Optional
activeSheetId nsM:activeSheetId Required
showFormulaBar nsM:showFormulaBar true Optional
showStatusbar nsM:showStatusbar true Optional
showComments nsM:showComments commIndicator Optional
showObjects nsM:showObjects all Optional
Collapse Derivation Tree:
Collapse References:
nsM:customWorkbookView
