Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_DataBinding
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-customXmlMappings.xsd
Abstract

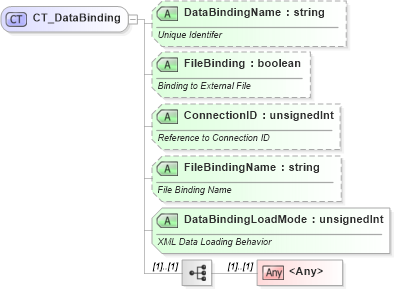

Collapse XSD Schema Diagram:
Drilldown into DataBindingLoadMode in schema sml-customxmlmappings_xsd Drilldown into FileBindingName in schema sml-customxmlmappings_xsd Drilldown into ConnectionID in schema sml-customxmlmappings_xsd Drilldown into FileBinding in schema sml-customxmlmappings_xsd Drilldown into DataBindingName in schema sml-customxmlmappings_xsdXSD Diagram of CT_DataBinding in schema sml-customxmlmappings_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_DataBinding">
    <xsd:sequence>
        <xsd:any>
        </xsd:any>
    </xsd:sequence>
    <xsd:attribute name="DataBindingName" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Unique Identifer</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="FileBinding" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Binding to External File</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ConnectionID" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Reference to Connection ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="FileBindingName" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>File Binding Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="DataBindingLoadMode" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>XML Data Loading Behavior</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
DataBindingName nsM:DataBindingName Optional
FileBinding nsM:FileBinding Optional
ConnectionID nsM:ConnectionID Optional
FileBindingName nsM:FileBindingName Optional
DataBindingLoadMode nsM:DataBindingLoadMode Required
Collapse Derivation Tree:
Collapse References:
nsM:DataBinding
