Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_DataValidations
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

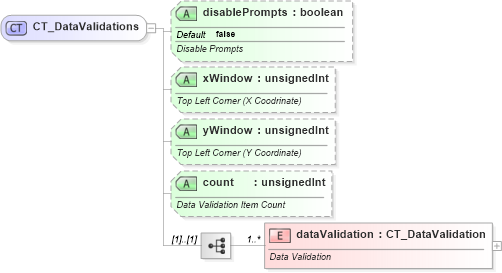

Collapse XSD Schema Diagram:
Drilldown into dataValidation in schema sml-sheet_xsd Drilldown into count in schema sml-sheet_xsd Drilldown into yWindow in schema sml-sheet_xsd Drilldown into xWindow in schema sml-sheet_xsd Drilldown into disablePrompts in schema sml-sheet_xsdXSD Diagram of CT_DataValidations in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_DataValidations">
    <xsd:sequence>
        <xsd:element name="dataValidation" type="CT_DataValidation" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Data Validation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="disablePrompts" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Disable Prompts</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xWindow" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Top Left Corner (X Coodrinate)</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="yWindow" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Top Left Corner (Y Coordinate)</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="count" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Data Validation Item Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dataValidation nsM:dataValidation 1 unbounded
Collapse Child Attributes:
Name Type Default Value Use
disablePrompts nsM:disablePrompts false Optional
xWindow nsM:xWindow Optional
yWindow nsM:yWindow Optional
count nsM:count Optional
Collapse Derivation Tree:
Collapse References:
nsM:dataValidations
