Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_DdeItem
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-supplementaryWorkbooks.xsd
Abstract

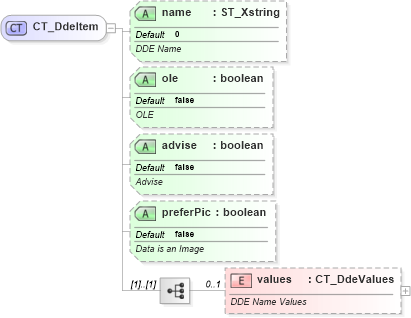

Collapse XSD Schema Diagram:
Drilldown into values in schema sml-supplementaryworkbooks_xsd Drilldown into preferPic in schema sml-supplementaryworkbooks_xsd Drilldown into advise in schema sml-supplementaryworkbooks_xsd Drilldown into ole in schema sml-supplementaryworkbooks_xsd Drilldown into name in schema sml-supplementaryworkbooks_xsdXSD Diagram of CT_DdeItem in schema sml-supplementaryworkbooks_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_DdeItem">
    <xsd:sequence>
        <xsd:element name="values" type="CT_DdeValues" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>DDE Name Values</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="ST_Xstring" default="0">
        <xsd:annotation>
            <xsd:documentation>DDE Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ole" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>OLE</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="advise" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Advise</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="preferPic" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Data is an Image</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
values nsM:values 0 1
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name 0 (Optional)
ole nsM:ole false Optional
advise nsM:advise false Optional
preferPic nsM:preferPic false Optional
Collapse Derivation Tree:
Collapse References:
nsM:ddeItem
