Definition Type: ComplexType
Name: CT_DiagramDefinition
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract

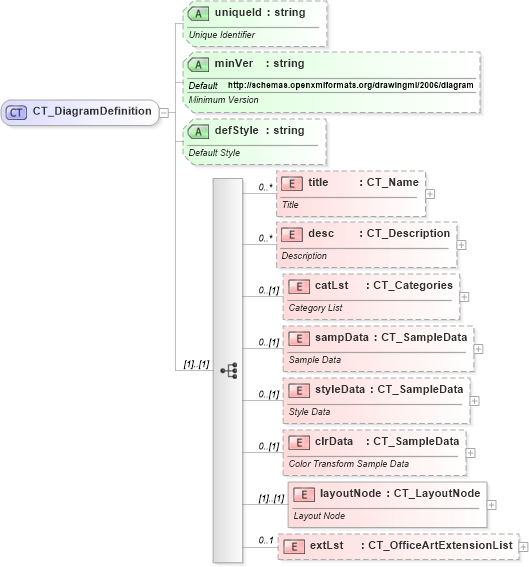

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into layoutNode in schema dml-diagramdefinition_xsd Drilldown into clrData in schema dml-diagramdefinition_xsd Drilldown into styleData in schema dml-diagramdefinition_xsd Drilldown into sampData in schema dml-diagramdefinition_xsd Drilldown into catLst in schema dml-diagramdefinition_xsd Drilldown into desc in schema dml-diagramdefinition_xsd Drilldown into title in schema dml-diagramdefinition_xsd Drilldown into defStyle in schema dml-diagramdefinition_xsd Drilldown into minVer in schema dml-diagramdefinition_xsd Drilldown into uniqueId in schema dml-diagramdefinition_xsdXSD Diagram of CT_DiagramDefinition in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_DiagramDefinition">
    <xsd:sequence>
        <xsd:element name="title" type="CT_Name" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Title</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="desc" type="CT_Description" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Description</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="catLst" type="CT_Categories" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Category List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sampData" type="CT_SampleData" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Sample Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="styleData" type="CT_SampleData" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Style Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clrData" type="CT_SampleData" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Color Transform Sample Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="layoutNode" type="CT_LayoutNode">
            <xsd:annotation>
                <xsd:documentation>Layout Node</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="uniqueId" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Unique Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minVer" type="xsd:string" use="optional" default="http://schemas.openxmlformats.org/drawingml/2006/diagram">
        <xsd:annotation>
            <xsd:documentation>Minimum Version</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="defStyle" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Default Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title nsC:title 0 unbounded
desc nsC:desc 0 unbounded
catLst nsC:catLst 0 (1)
sampData nsC:sampData 0 (1)
styleData nsC:styleData 0 (1)
clrData nsC:clrData 0 (1)
layoutNode nsC:layoutNode (1) (1)
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
uniqueId nsC:uniqueId Optional
minVer nsC:minVer http://schemas.openxmlformats.org/drawingml/2006/diagram Optional
defStyle nsC:defStyle Optional
Collapse Derivation Tree:
Collapse References:
nsC:layoutDef
