Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Dialogsheet
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

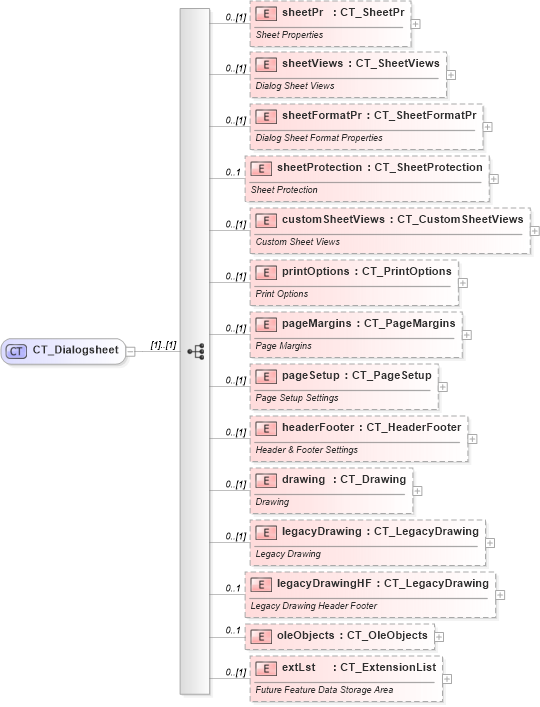

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sheet_xsd Drilldown into oleObjects in schema sml-sheet_xsd Drilldown into legacyDrawingHF in schema sml-sheet_xsd Drilldown into legacyDrawing in schema sml-sheet_xsd Drilldown into drawing in schema sml-sheet_xsd Drilldown into headerFooter in schema sml-sheet_xsd Drilldown into pageSetup in schema sml-sheet_xsd Drilldown into pageMargins in schema sml-sheet_xsd Drilldown into printOptions in schema sml-sheet_xsd Drilldown into customSheetViews in schema sml-sheet_xsd Drilldown into sheetProtection in schema sml-sheet_xsd Drilldown into sheetFormatPr in schema sml-sheet_xsd Drilldown into sheetViews in schema sml-sheet_xsd Drilldown into sheetPr in schema sml-sheet_xsdXSD Diagram of CT_Dialogsheet in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Dialogsheet">
    <xsd:sequence>
        <xsd:element name="sheetPr" minOccurs="0" type="CT_SheetPr">
            <xsd:annotation>
                <xsd:documentation>Sheet Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sheetViews" minOccurs="0" type="CT_SheetViews">
            <xsd:annotation>
                <xsd:documentation>Dialog Sheet Views</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sheetFormatPr" minOccurs="0" type="CT_SheetFormatPr">
            <xsd:annotation>
                <xsd:documentation>Dialog Sheet Format Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sheetProtection" type="CT_SheetProtection" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Sheet Protection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="customSheetViews" minOccurs="0" type="CT_CustomSheetViews">
            <xsd:annotation>
                <xsd:documentation>Custom Sheet Views</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="printOptions" minOccurs="0" type="CT_PrintOptions">
            <xsd:annotation>
                <xsd:documentation>Print Options</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pageMargins" minOccurs="0" type="CT_PageMargins">
            <xsd:annotation>
                <xsd:documentation>Page Margins</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pageSetup" minOccurs="0" type="CT_PageSetup">
            <xsd:annotation>
                <xsd:documentation>Page Setup Settings</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="headerFooter" minOccurs="0" type="CT_HeaderFooter">
            <xsd:annotation>
                <xsd:documentation>Header &amp; Footer Settings</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="drawing" minOccurs="0" type="CT_Drawing">
            <xsd:annotation>
                <xsd:documentation>Drawing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="legacyDrawing" minOccurs="0" type="CT_LegacyDrawing">
            <xsd:annotation>
                <xsd:documentation>Legacy Drawing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="legacyDrawingHF" type="CT_LegacyDrawing" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Legacy Drawing Header Footer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="oleObjects" type="CT_OleObjects" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sheetPr nsM:sheetPr 0 (1)
sheetViews nsM:sheetViews 0 (1)
sheetFormatPr nsM:sheetFormatPr 0 (1)
sheetProtection nsM:sheetProtection 0 1
customSheetViews nsM:customSheetViews 0 (1)
printOptions nsM:printOptions 0 (1)
pageMargins nsM:pageMargins 0 (1)
pageSetup nsM:pageSetup 0 (1)
headerFooter nsM:headerFooter 0 (1)
drawing nsM:drawing 0 (1)
legacyDrawing nsM:legacyDrawing 0 (1)
legacyDrawingHF nsM:legacyDrawingHF 0 1
oleObjects nsM:oleObjects 0 1
extLst nsM:extLst 0 (1)
Collapse Derivation Tree:
Collapse References:
nsM:dialogsheet
