Definition Type: ComplexType
Name: CT_DispUnits
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

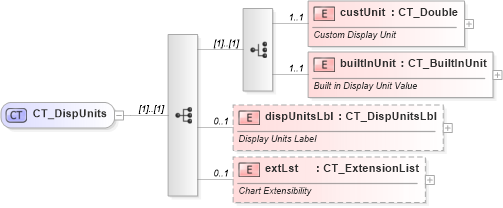

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into dispUnitsLbl in schema dml-chart_xsd Drilldown into builtInUnit in schema dml-chart_xsd Drilldown into custUnit in schema dml-chart_xsdXSD Diagram of CT_DispUnits in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_DispUnits">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element name="custUnit" type="CT_Double" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Custom Display Unit</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="builtInUnit" type="CT_BuiltInUnit" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Built in Display Unit Value</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="dispUnitsLbl" type="CT_DispUnitsLbl" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Display Units Label</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
custUnit nsA:custUnit 1 1
builtInUnit nsA:builtInUnit 1 1
dispUnitsLbl nsA:dispUnitsLbl 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:dispUnits
