Definition Type: ComplexType
Name: CT_ElemPropSet
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramElementPropertySet.xsd
Abstract

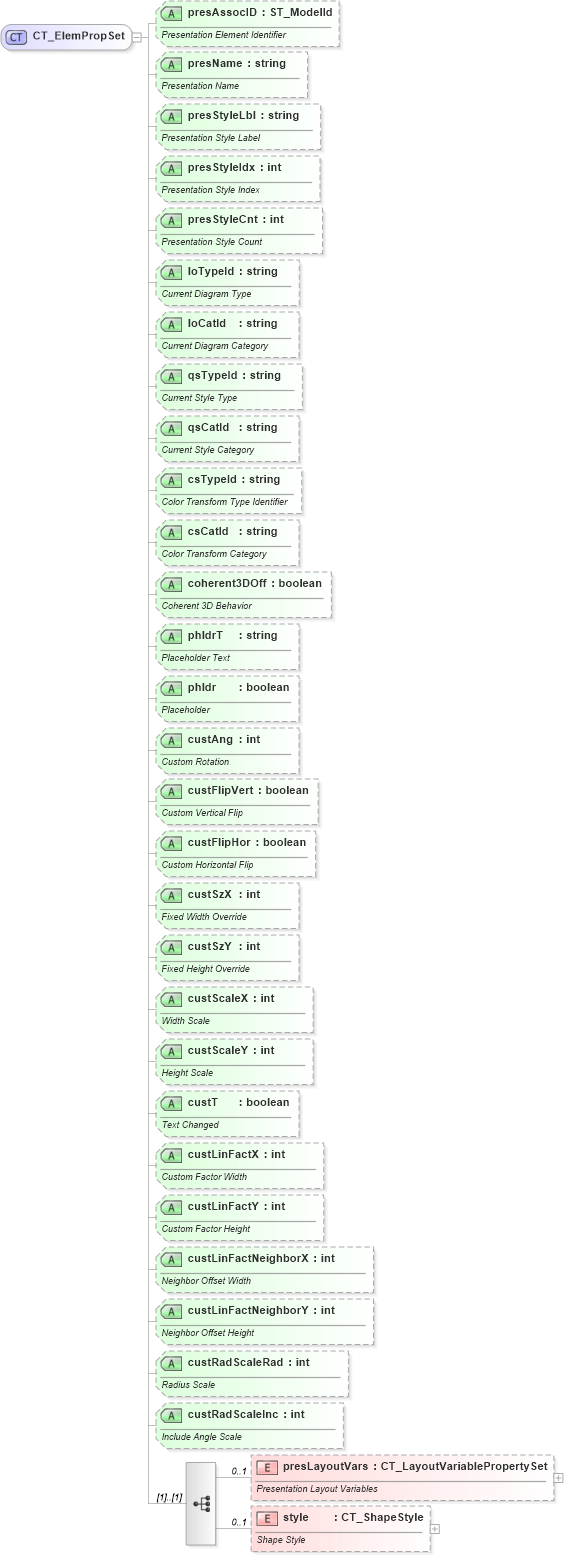

Collapse XSD Schema Diagram:
Drilldown into style in schema dml-diagramelementpropertyset_xsd Drilldown into presLayoutVars in schema dml-diagramelementpropertyset_xsd Drilldown into custRadScaleInc in schema dml-diagramelementpropertyset_xsd Drilldown into custRadScaleRad in schema dml-diagramelementpropertyset_xsd Drilldown into custLinFactNeighborY in schema dml-diagramelementpropertyset_xsd Drilldown into custLinFactNeighborX in schema dml-diagramelementpropertyset_xsd Drilldown into custLinFactY in schema dml-diagramelementpropertyset_xsd Drilldown into custLinFactX in schema dml-diagramelementpropertyset_xsd Drilldown into custT in schema dml-diagramelementpropertyset_xsd Drilldown into custScaleY in schema dml-diagramelementpropertyset_xsd Drilldown into custScaleX in schema dml-diagramelementpropertyset_xsd Drilldown into custSzY in schema dml-diagramelementpropertyset_xsd Drilldown into custSzX in schema dml-diagramelementpropertyset_xsd Drilldown into custFlipHor in schema dml-diagramelementpropertyset_xsd Drilldown into custFlipVert in schema dml-diagramelementpropertyset_xsd Drilldown into custAng in schema dml-diagramelementpropertyset_xsd Drilldown into phldr in schema dml-diagramelementpropertyset_xsd Drilldown into phldrT in schema dml-diagramelementpropertyset_xsd Drilldown into coherent3DOff in schema dml-diagramelementpropertyset_xsd Drilldown into csCatId in schema dml-diagramelementpropertyset_xsd Drilldown into csTypeId in schema dml-diagramelementpropertyset_xsd Drilldown into qsCatId in schema dml-diagramelementpropertyset_xsd Drilldown into qsTypeId in schema dml-diagramelementpropertyset_xsd Drilldown into loCatId in schema dml-diagramelementpropertyset_xsd Drilldown into loTypeId in schema dml-diagramelementpropertyset_xsd Drilldown into presStyleCnt in schema dml-diagramelementpropertyset_xsd Drilldown into presStyleIdx in schema dml-diagramelementpropertyset_xsd Drilldown into presStyleLbl in schema dml-diagramelementpropertyset_xsd Drilldown into presName in schema dml-diagramelementpropertyset_xsd Drilldown into presAssocID in schema dml-diagramelementpropertyset_xsdXSD Diagram of CT_ElemPropSet in schema dml-diagramelementpropertyset_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ElemPropSet">
    <xsd:sequence>
        <xsd:element name="presLayoutVars" type="CT_LayoutVariablePropertySet" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Presentation Layout Variables</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="style" type="a:CT_ShapeStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Style</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="presAssocID" type="ST_ModelId" use="optional">
        <xsd:annotation>
            <xsd:documentation>Presentation Element Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presName" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Presentation Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presStyleLbl" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Presentation Style Label</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presStyleIdx" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Presentation Style Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presStyleCnt" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Presentation Style Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="loTypeId" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Current Diagram Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="loCatId" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Current Diagram Category</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="qsTypeId" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Current Style Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="qsCatId" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Current Style Category</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="csTypeId" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Color Transform Type Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="csCatId" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Color Transform Category</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="coherent3DOff" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Coherent 3D Behavior</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="phldrT" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Placeholder Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="phldr" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custAng" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Custom Rotation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custFlipVert" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Custom Vertical Flip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custFlipHor" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Custom Horizontal Flip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custSzX" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fixed Width Override</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custSzY" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fixed Height Override</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custScaleX" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Width Scale</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custScaleY" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Height Scale</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custT" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Changed</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custLinFactX" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Custom Factor Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custLinFactY" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Custom Factor Height</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custLinFactNeighborX" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Neighbor Offset Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custLinFactNeighborY" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Neighbor Offset Height</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custRadScaleRad" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Radius Scale</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="custRadScaleInc" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Include Angle Scale</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
presLayoutVars nsC:presLayoutVars 0 1
style nsC:style 0 1
Collapse Child Attributes:
Name Type Default Value Use
presAssocID nsC:presAssocID Optional
presName nsC:presName Optional
presStyleLbl nsC:presStyleLbl Optional
presStyleIdx nsC:presStyleIdx Optional
presStyleCnt nsC:presStyleCnt Optional
loTypeId nsC:loTypeId Optional
loCatId nsC:loCatId Optional
qsTypeId nsC:qsTypeId Optional
qsCatId nsC:qsCatId Optional
csTypeId nsC:csTypeId Optional
csCatId nsC:csCatId Optional
coherent3DOff nsC:coherent3DOff Optional
phldrT nsC:phldrT Optional
phldr nsC:phldr Optional
custAng nsC:custAng Optional
custFlipVert nsC:custFlipVert Optional
custFlipHor nsC:custFlipHor Optional
custSzX nsC:custSzX Optional
custSzY nsC:custSzY Optional
custScaleX nsC:custScaleX Optional
custScaleY nsC:custScaleY Optional
custT nsC:custT Optional
custLinFactX nsC:custLinFactX Optional
custLinFactY nsC:custLinFactY Optional
custLinFactNeighborX nsC:custLinFactNeighborX Optional
custLinFactNeighborY nsC:custLinFactNeighborY Optional
custRadScaleRad nsC:custRadScaleRad Optional
custRadScaleInc nsC:custRadScaleInc Optional
Collapse Derivation Tree:
