Definition Type: ComplexType
Name: CT_ErrBars
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

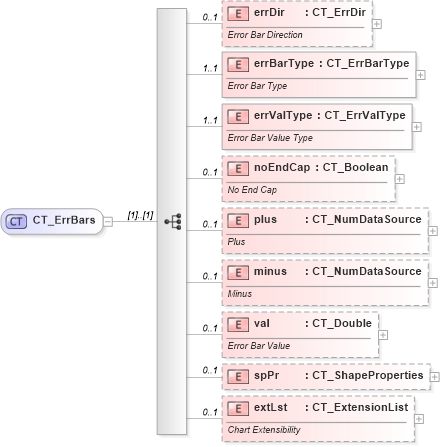

Drilldown into extLst in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into val in schema dml-chart_xsd Drilldown into minus in schema dml-chart_xsd Drilldown into plus in schema dml-chart_xsd Drilldown into noEndCap in schema dml-chart_xsd Drilldown into errValType in schema dml-chart_xsd Drilldown into errBarType in schema dml-chart_xsd Drilldown into errDir in schema dml-chart_xsdXSD Diagram of CT_ErrBars in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ErrBars">
    <xsd:sequence>
        <xsd:element name="errDir" type="CT_ErrDir" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Error Bar Direction</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="errBarType" type="CT_ErrBarType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Error Bar Type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="errValType" type="CT_ErrValType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Error Bar Value Type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="noEndCap" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>No End Cap</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="plus" type="CT_NumDataSource" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Plus</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="minus" type="CT_NumDataSource" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Minus</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="val" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Error Bar Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
errDir nsA:errDir 0 1
errBarType nsA:errBarType 1 1
errValType nsA:errValType 1 1
noEndCap nsA:noEndCap 0 1
plus nsA:plus 0 1
minus nsA:minus 0 1
val nsA:val 0 1
spPr nsA:spPr 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:errBars, nsA:errBars, nsA:errBars, nsA:errBars, nsA:errBars
