Definition Type: ComplexType
Name: CT_ExternalData
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

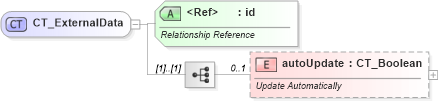

Collapse XSD Schema Diagram:
Drilldown into autoUpdate in schema dml-chart_xsd Drilldown into id in schema shared-relationshipreference_xsdXSD Diagram of CT_ExternalData in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ExternalData">
    <xsd:sequence>
        <xsd:element name="autoUpdate" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Update Automatically</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute ref="r:id" use="required">
        <xsd:annotation>
            <xsd:documentation>Relationship Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
autoUpdate nsA:autoUpdate 0 1
Collapse Child Attributes:
Name Type Default Value Use
id r:id Required
Collapse Derivation Tree:
Collapse References:
nsA:externalData
