Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ExternalLink
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-supplementaryWorkbooks.xsd
Abstract

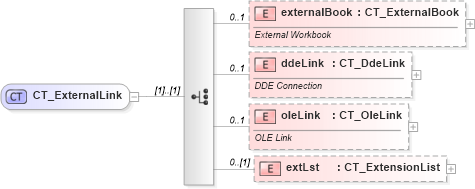

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-supplementaryworkbooks_xsd Drilldown into oleLink in schema sml-supplementaryworkbooks_xsd Drilldown into ddeLink in schema sml-supplementaryworkbooks_xsd Drilldown into externalBook in schema sml-supplementaryworkbooks_xsdXSD Diagram of CT_ExternalLink in schema sml-supplementaryworkbooks_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ExternalLink">
    <xsd:choice>
        <xsd:element name="externalBook" type="CT_ExternalBook" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>External Workbook</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ddeLink" type="CT_DdeLink" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>DDE Connection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="oleLink" type="CT_OleLink" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>OLE Link</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
externalBook nsM:externalBook 0 1
ddeLink nsM:ddeLink 0 1
oleLink nsM:oleLink 0 1
extLst nsM:extLst 0 (1)
Collapse Derivation Tree:
Collapse References:
nsM:externalLink
