Definition Type: ComplexType
Name: CT_Fill
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd
Abstract

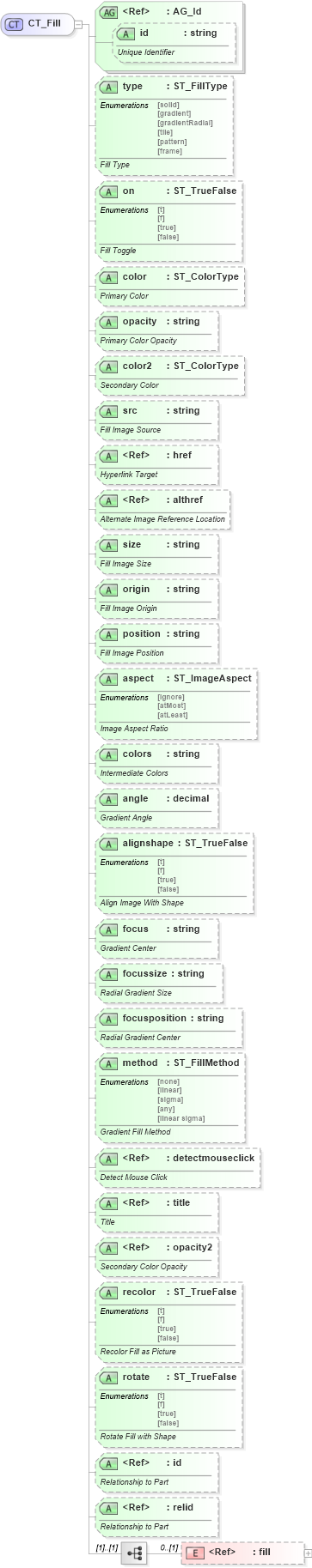

Collapse XSD Schema Diagram:
Drilldown into fill in schema vml-officedrawing_xsd Drilldown into relid in schema vml-officedrawing_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into rotate in schema vml-main_xsd Drilldown into recolor in schema vml-main_xsd Drilldown into opacity2 in schema vml-officedrawing_xsd Drilldown into title in schema vml-officedrawing_xsd Drilldown into detectmouseclick in schema vml-officedrawing_xsd Drilldown into method in schema vml-main_xsd Drilldown into focusposition in schema vml-main_xsd Drilldown into focussize in schema vml-main_xsd Drilldown into focus in schema vml-main_xsd Drilldown into alignshape in schema vml-main_xsd Drilldown into angle in schema vml-main_xsd Drilldown into colors in schema vml-main_xsd Drilldown into aspect in schema vml-main_xsd Drilldown into position in schema vml-main_xsd Drilldown into origin in schema vml-main_xsd Drilldown into size in schema vml-main_xsd Drilldown into althref in schema vml-officedrawing_xsd Drilldown into href in schema vml-officedrawing_xsd Drilldown into src in schema vml-main_xsd Drilldown into color2 in schema vml-main_xsd Drilldown into opacity in schema vml-main_xsd Drilldown into color in schema vml-main_xsd Drilldown into on in schema vml-main_xsd Drilldown into type in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsdXSD Diagram of CT_Fill in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Fill">
    <xsd:sequence>
        <xsd:element ref="o:fill" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="AG_Id" />
    <xsd:attribute name="type" type="ST_FillType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="on" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="color" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Primary Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="opacity" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Primary Color Opacity</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="color2" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Secondary Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="src" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Image Source</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:href">
        <xsd:annotation>
            <xsd:documentation>Hyperlink Target</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:althref">
        <xsd:annotation>
            <xsd:documentation>Alternate Image Reference Location</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="size" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Image Size</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="origin" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Image Origin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="position" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Image Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="aspect" type="ST_ImageAspect" use="optional">
        <xsd:annotation>
            <xsd:documentation>Image Aspect Ratio</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="colors" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Intermediate Colors</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="angle" type="xsd:decimal" use="optional">
        <xsd:annotation>
            <xsd:documentation>Gradient Angle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="alignshape" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Align Image With Shape</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="focus" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Gradient Center</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="focussize" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Radial Gradient Size</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="focusposition" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Radial Gradient Center</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="method" type="ST_FillMethod" use="optional">
        <xsd:annotation>
            <xsd:documentation>Gradient Fill Method</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:detectmouseclick">
        <xsd:annotation>
            <xsd:documentation>Detect Mouse Click</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:title">
        <xsd:annotation>
            <xsd:documentation>Title</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:opacity2">
        <xsd:annotation>
            <xsd:documentation>Secondary Color Opacity</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="recolor" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Recolor Fill as Picture</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rotate" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Rotate Fill with Shape</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:id" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relationship to Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:relid" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relationship to Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fill o:fill 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
type v:type Optional
on v:on Optional
color v:color Optional
opacity v:opacity Optional
color2 v:color2 Optional
src v:src Optional
href o:href (Optional)
althref o:althref (Optional)
size v:size Optional
origin v:origin Optional
position v:position Optional
aspect v:aspect Optional
colors v:colors Optional
angle v:angle Optional
alignshape v:alignshape Optional
focus v:focus Optional
focussize v:focussize Optional
focusposition v:focusposition Optional
method v:method Optional
detectmouseclick o:detectmouseclick (Optional)
title o:title (Optional)
opacity2 o:opacity2 (Optional)
recolor v:recolor Optional
rotate v:rotate Optional
id r:id Optional
relid o:relid Optional
Collapse Derivation Tree:
Collapse References:
v:fill
