Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Font
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

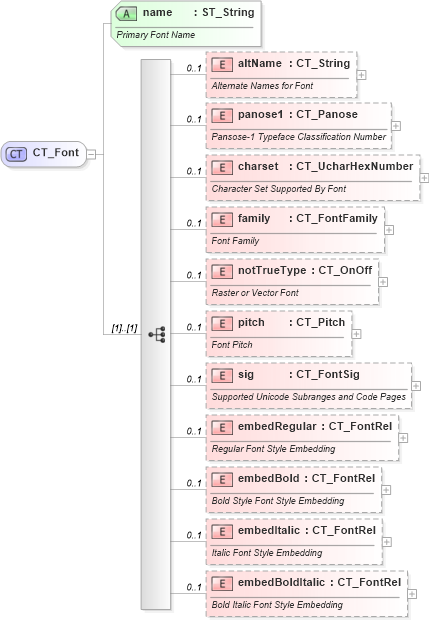

Collapse XSD Schema Diagram:
Drilldown into embedBoldItalic in schema wml_xsd Drilldown into embedItalic in schema wml_xsd Drilldown into embedBold in schema wml_xsd Drilldown into embedRegular in schema wml_xsd Drilldown into sig in schema wml_xsd Drilldown into pitch in schema wml_xsd Drilldown into notTrueType in schema wml_xsd Drilldown into family in schema wml_xsd Drilldown into charset in schema wml_xsd Drilldown into panose1 in schema wml_xsd Drilldown into altName in schema wml_xsd Drilldown into name in schema wml_xsdXSD Diagram of CT_Font in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Font">
    <xsd:sequence>
        <xsd:element name="altName" type="CT_String" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alternate Names for Font</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="panose1" type="CT_Panose" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Pansose-1 Typeface Classification Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="charset" type="CT_UcharHexNumber" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Character Set Supported By Font</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="family" type="CT_FontFamily" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font Family</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="notTrueType" type="CT_OnOff" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Raster or Vector Font</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pitch" type="CT_Pitch" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font Pitch</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sig" type="CT_FontSig" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Supported Unicode Subranges and Code Pages</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="embedRegular" type="CT_FontRel" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Regular Font Style Embedding</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="embedBold" type="CT_FontRel" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bold Style Font Style Embedding</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="embedItalic" type="CT_FontRel" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Italic Font Style Embedding</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="embedBoldItalic" type="CT_FontRel" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bold Italic Font Style Embedding</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="ST_String" use="required">
        <xsd:annotation>
            <xsd:documentation>Primary Font Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
altName w:altName 0 1
panose1 w:panose1 0 1
charset w:charset 0 1
family w:family 0 1
notTrueType w:notTrueType 0 1
pitch w:pitch 0 1
sig w:sig 0 1
embedRegular w:embedRegular 0 1
embedBold w:embedBold 0 1
embedItalic w:embedItalic 0 1
embedBoldItalic w:embedBoldItalic 0 1
Collapse Child Attributes:
Name Type Default Value Use
name w:name Required
Collapse Derivation Tree:
Collapse References:
w:font
