Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_FramePr
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

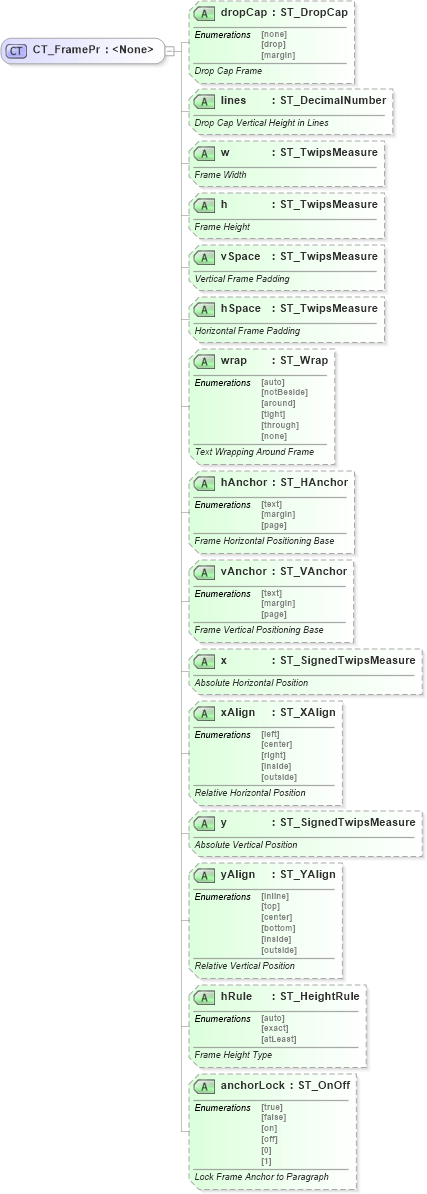

Collapse XSD Schema Diagram:
Drilldown into anchorLock in schema wml_xsd Drilldown into hRule in schema wml_xsd Drilldown into yAlign in schema wml_xsd Drilldown into y in schema wml_xsd Drilldown into xAlign in schema wml_xsd Drilldown into x in schema wml_xsd Drilldown into vAnchor in schema wml_xsd Drilldown into hAnchor in schema wml_xsd Drilldown into wrap in schema wml_xsd Drilldown into hSpace in schema wml_xsd Drilldown into vSpace in schema wml_xsd Drilldown into h in schema wml_xsd Drilldown into w in schema wml_xsd Drilldown into lines in schema wml_xsd Drilldown into dropCap in schema wml_xsdXSD Diagram of CT_FramePr in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_FramePr">
    <xsd:attribute name="dropCap" type="ST_DropCap" use="optional">
        <xsd:annotation>
            <xsd:documentation>Drop Cap Frame</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="lines" type="ST_DecimalNumber" use="optional">
        <xsd:annotation>
            <xsd:documentation>Drop Cap Vertical Height in Lines</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="w" type="ST_TwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Frame Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="h" type="ST_TwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Frame Height</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vSpace" type="ST_TwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Vertical Frame Padding</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hSpace" type="ST_TwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Horizontal Frame Padding</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="wrap" type="ST_Wrap" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Wrapping Around Frame</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hAnchor" type="ST_HAnchor" use="optional">
        <xsd:annotation>
            <xsd:documentation>Frame Horizontal Positioning Base</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vAnchor" type="ST_VAnchor" use="optional">
        <xsd:annotation>
            <xsd:documentation>Frame Vertical Positioning Base</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="x" type="ST_SignedTwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Absolute Horizontal Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xAlign" type="ST_XAlign" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relative Horizontal Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="y" type="ST_SignedTwipsMeasure" use="optional">
        <xsd:annotation>
            <xsd:documentation>Absolute Vertical Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="yAlign" type="ST_YAlign" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relative Vertical Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hRule" type="ST_HeightRule" use="optional">
        <xsd:annotation>
            <xsd:documentation>Frame Height Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="anchorLock" type="ST_OnOff" use="optional">
        <xsd:annotation>
            <xsd:documentation>Lock Frame Anchor to Paragraph</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
dropCap w:dropCap Optional
lines w:lines Optional
w w:w Optional
h w:h Optional
vSpace w:vSpace Optional
hSpace w:hSpace Optional
wrap w:wrap Optional
hAnchor w:hAnchor Optional
vAnchor w:vAnchor Optional
x w:x Optional
xAlign w:xAlign Optional
y w:y Optional
yAlign w:yAlign Optional
hRule w:hRule Optional
anchorLock w:anchorLock Optional
Collapse Derivation Tree:
Collapse References:
w:framePr
